UKPX05D1-

Designations

UKPX05D1

Included products

Bearing	UKX05D1		Bearing
Housing	PX05D1		Housing

Associated products

Adapter sleeve

H2305X

Adapter sleeve

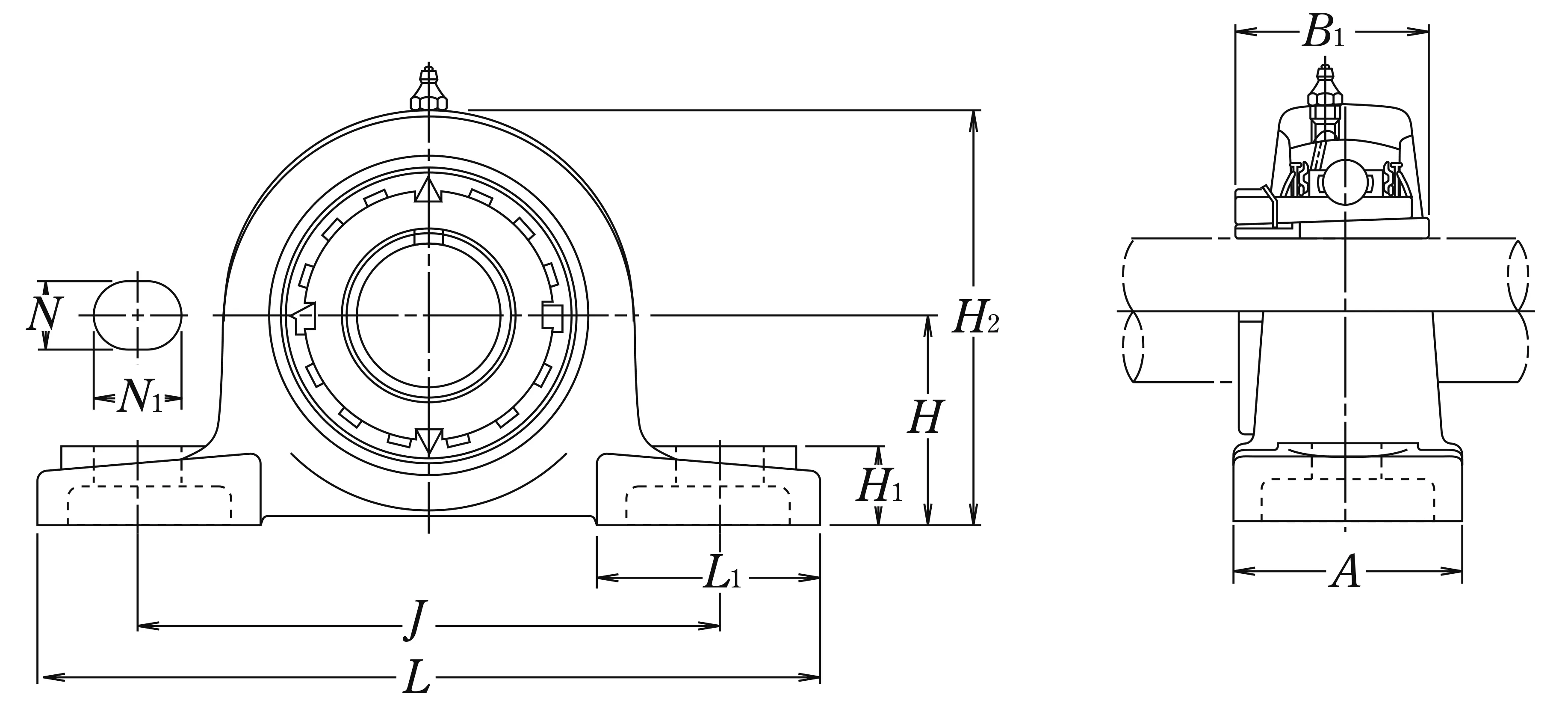

Nominal Dimensions

d	20	mm	Bore diameter
N1	20	mm	Length of attachment bolt hole
L	159	mm	Overall length
H	44.4	mm	Height of spherical seat centre
J	119	mm	Distance between attachment bolts
N	17	mm	Diameter of attachment bolt hole
A	51	mm	Base width
H1	18	mm	Distance between bottoms of piloting grooves
B1	35	mm	Width of inner ring
L1	50	mm	Foot width
H2	85	mm	Overall height

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

mass

1.4

kg

Mass approx.
