Z-UKP205D1-

Designations

Z-UKP205D1

Included products

Bearing	UK205D1		Bearing
Housing	P205D1		Housing

Associated products

Adapter sleeve

H2305X

Adapter sleeve

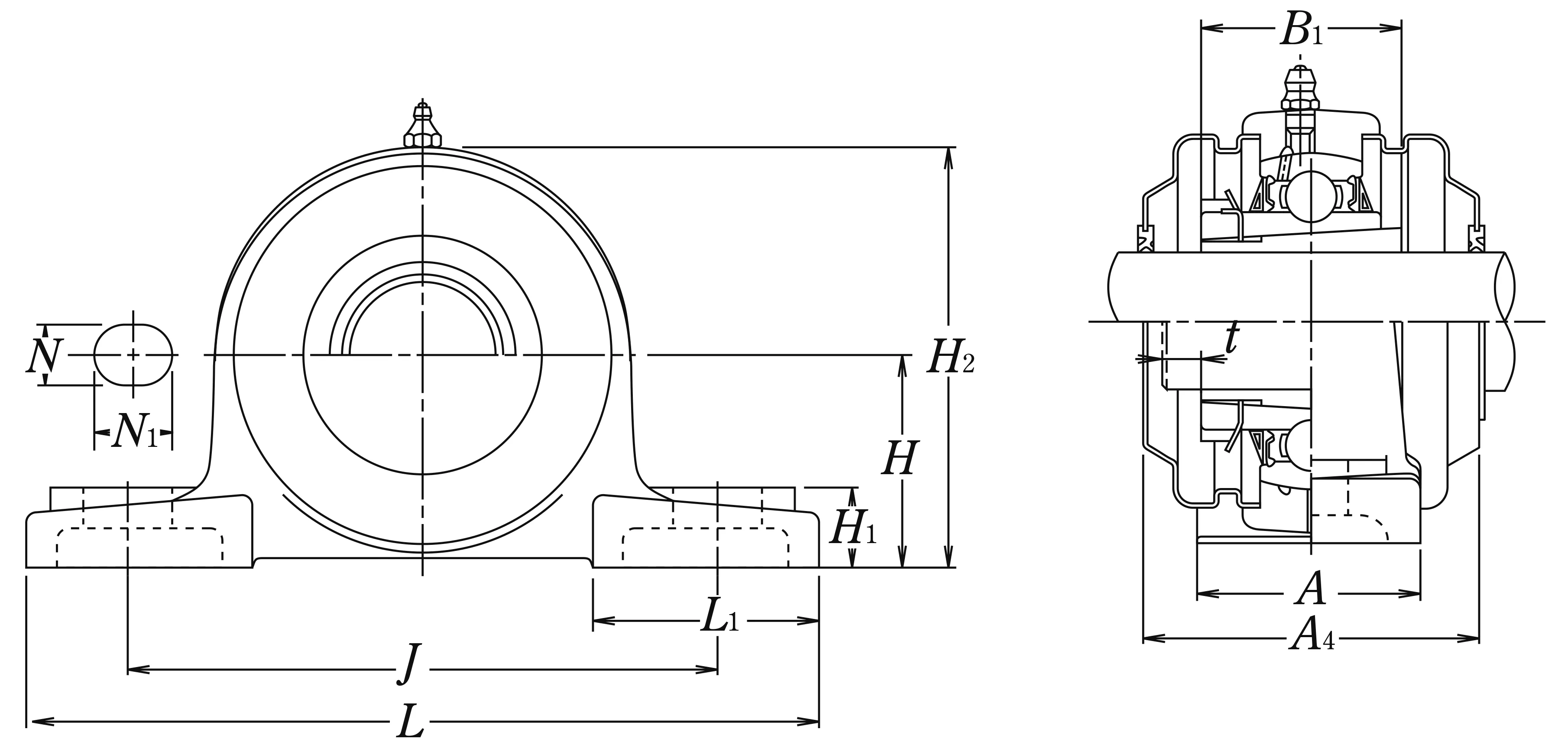

Nominal Dimensions

d	20	mm	Bore diameter
N1	16	mm	Length of attachment bolt hole
L	140	mm	Overall length
H	36.5	mm	Height of spherical seat centre
J	105	mm	Distance between attachment bolts
N	13	mm	Diameter of attachment bolt hole
A	38	mm	Base width
A4	48	mm	Width including end cover
t	2	mm	Clearance
H1	15	mm	Distance between bottoms of piloting grooves
B1	35	mm	Width of inner ring
L1	42	mm	Foot width
H2	71	mm	Overall height

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	14	kN	Basic dynamic load rating
C0r	7.85	kN	Basic static load rating

Mass

mass

0.9

kg

Mass approx.
