ASPB204-

Designations

ASPB204

Included products

Bearing	AS204		Bearing
Housing	PB204		Housing

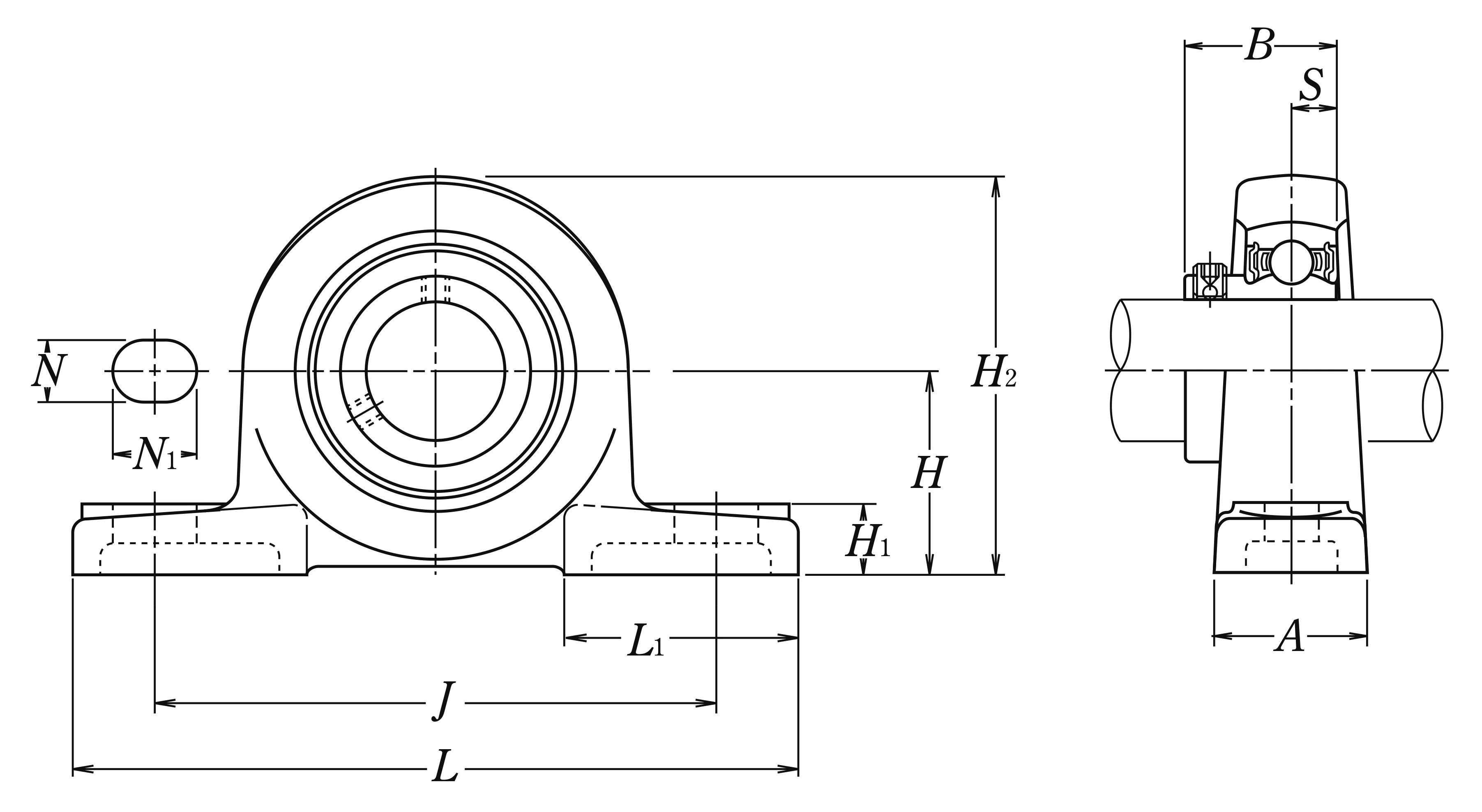

Nominal Dimensions

d	20	mm	Bore diameter
N1	16	mm	Length of attachment bolt hole
L	125	mm	Overall length
H	33.3	mm	Height of spherical seat centre
J	97	mm	Distance between attachment bolts
N	11	mm	Diameter of attachment bolt hole
A	27	mm	Base width
H1	13	mm	Distance between bottoms of piloting grooves
B	25	mm	Width of inner ring
S	7	mm	Distance from Opposite side face of locking device to raceway centre
L1	40	mm	Foot width
H2	65	mm	Overall height

Mounting information

G

M 8

Bolt size

Basic Load Ratings

Cr	12.8	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

mass

0.5

kg

Mass approx.
