UCPE204D1-

Designations

UCPE204D1

Included products

Bearing	UC204D1		Bearing
Housing	PE204D1		Housing

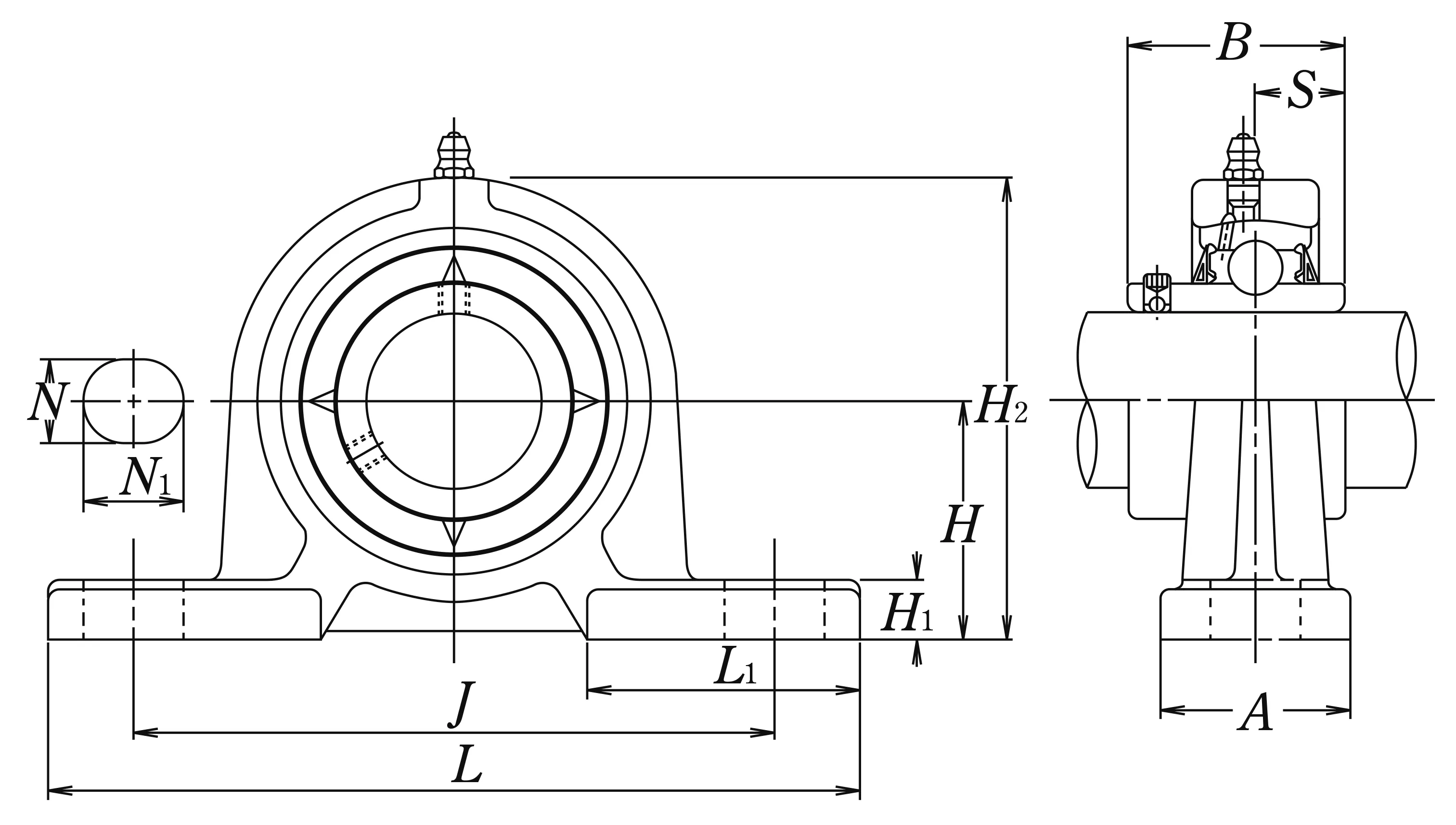

Nominal Dimensions

d	20	mm	Bore diameter
N1	14	mm	Length of attachment bolt hole
L	120	mm	Overall length
H	33.3	mm	Height of spherical seat centre
J	95	mm	Distance between attachment bolts
N	12	mm	Diameter of attachment bolt hole
A	30	mm	Base width
H1	9	mm	Distance between bottoms of piloting grooves
B	31	mm	Width of inner ring
S	12.7	mm	Distance from Opposite side face of locking device to raceway centre
L1	42	mm	Foot width
H2	64	mm	Overall height

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	12.8	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

mass

0.4

kg

Mass approx.
