UCPG203D1-

Designations

UCPG203D1

Included products

Bearing	UC203D1		Bearing
Housing	PG203D1		Housing

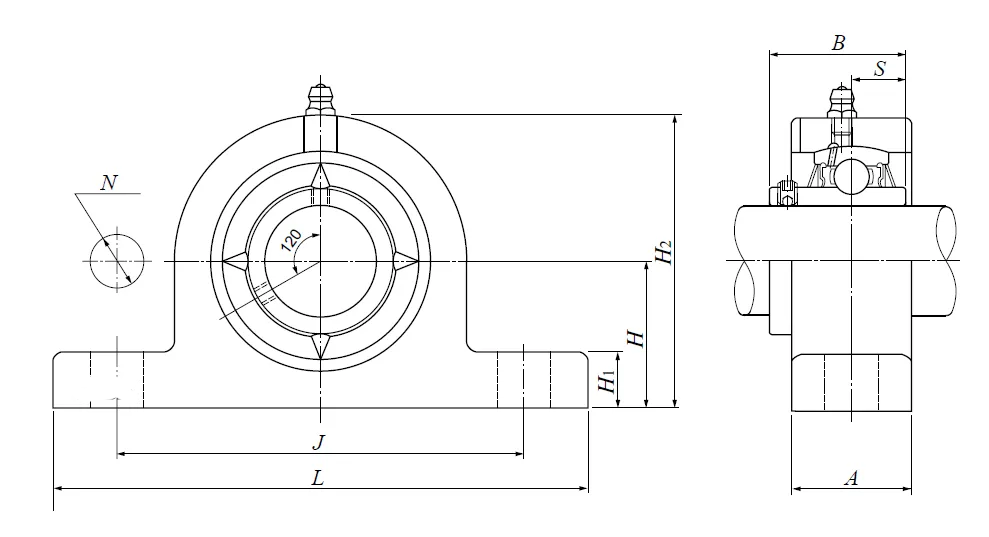

Nominal Dimensions

d	17	mm	Bore diameter
L	127	mm	Overall length
H	30.2	mm	Height of spherical seat centre
J	95	mm	Distance between attachment bolts
N	12	mm	Diameter of attachment bolt hole
A	25	mm	Base width
H1	14	mm	Distance between bottoms of piloting grooves
B	31	mm	Width of inner ring
S	12.7	mm	Distance from Opposite side face of locking device to raceway centre
H2	62	mm	Overall height

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	12.8	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

mass

0.7

kg

Mass approx.
