UCUP203D1-

Designations

UCUP203D1

Included products

Bearing	UC203D1		Bearing
Housing	UP204D1		Housing

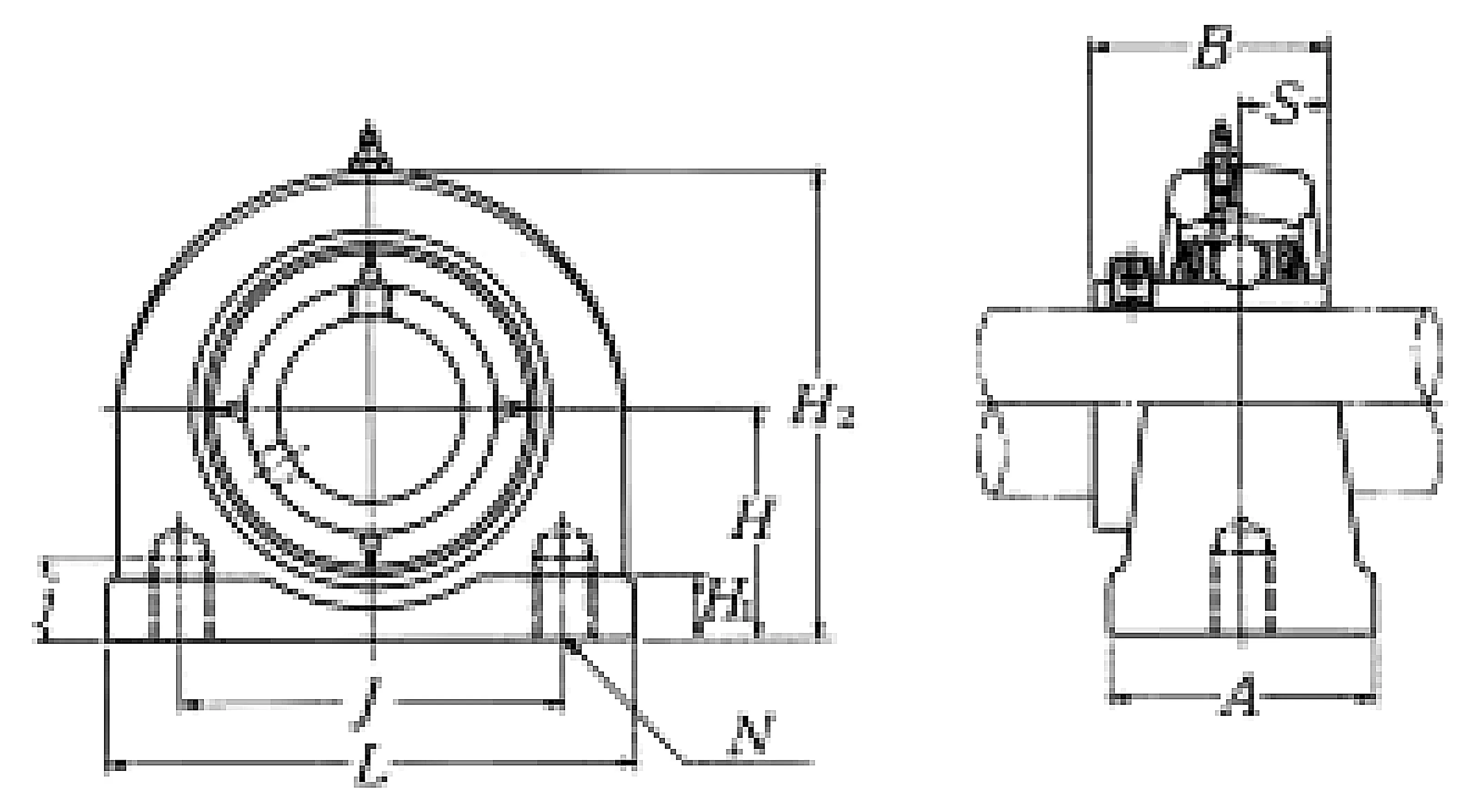

Nominal Dimensions

d	17	mm	Bore diameter
L	76	mm	Overall length
H	30.2	mm	Height of spherical seat centre
J	52	mm	Distance between attachment bolts
A	38	mm	Base width
H1	11	mm	Distance between bottoms of piloting grooves
B	31	mm	Width of inner ring
S	12.7	mm	Distance from Opposite side face of locking device to raceway centre
j	13	mm	Thread length
H2	62	mm	Overall height

Mounting information

N

M10×1.5

Set screw

Basic Load Ratings

Cr	12.8	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

mass

0.6

kg

Mass approx.
