ASPP203-

Designations

ASPP203

Included products

Bearing	AS203		Bearing
Housing	PP203		Housing

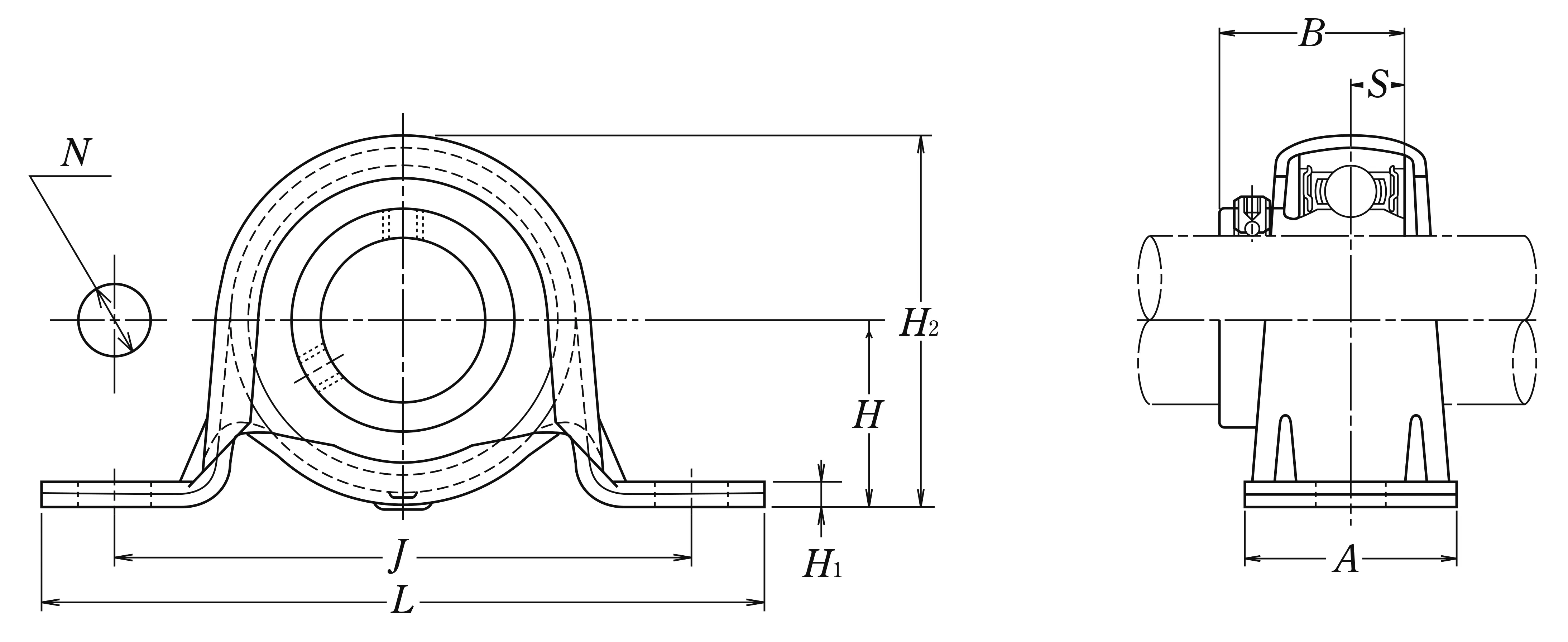

Nominal Dimensions

d	17	mm	Bore diameter
L	86	mm	Overall length
H	22.2	mm	Height of spherical seat centre
J	68	mm	Distance between attachment bolts
N	9.5	mm	Diameter of attachment bolt hole
A	25	mm	Base width
H1	3.2	mm	Distance between bottoms of piloting grooves
B	22	mm	Width of inner ring
S	6	mm	Distance from Opposite side face of locking device to raceway centre
H2	43.8	mm	Overall height

Mounting information

G

M 8

Bolt size

Basic Load Ratings

Cr	9.6	kN	Basic dynamic load rating
C0r	4.6	kN	Basic static load rating

Mass

mass

0.1

kg

Mass approx.
