AELPB202-

Designations

AELPB202

Included products

Bearing	AEL202		Bearing
Housing	PB201		Housing

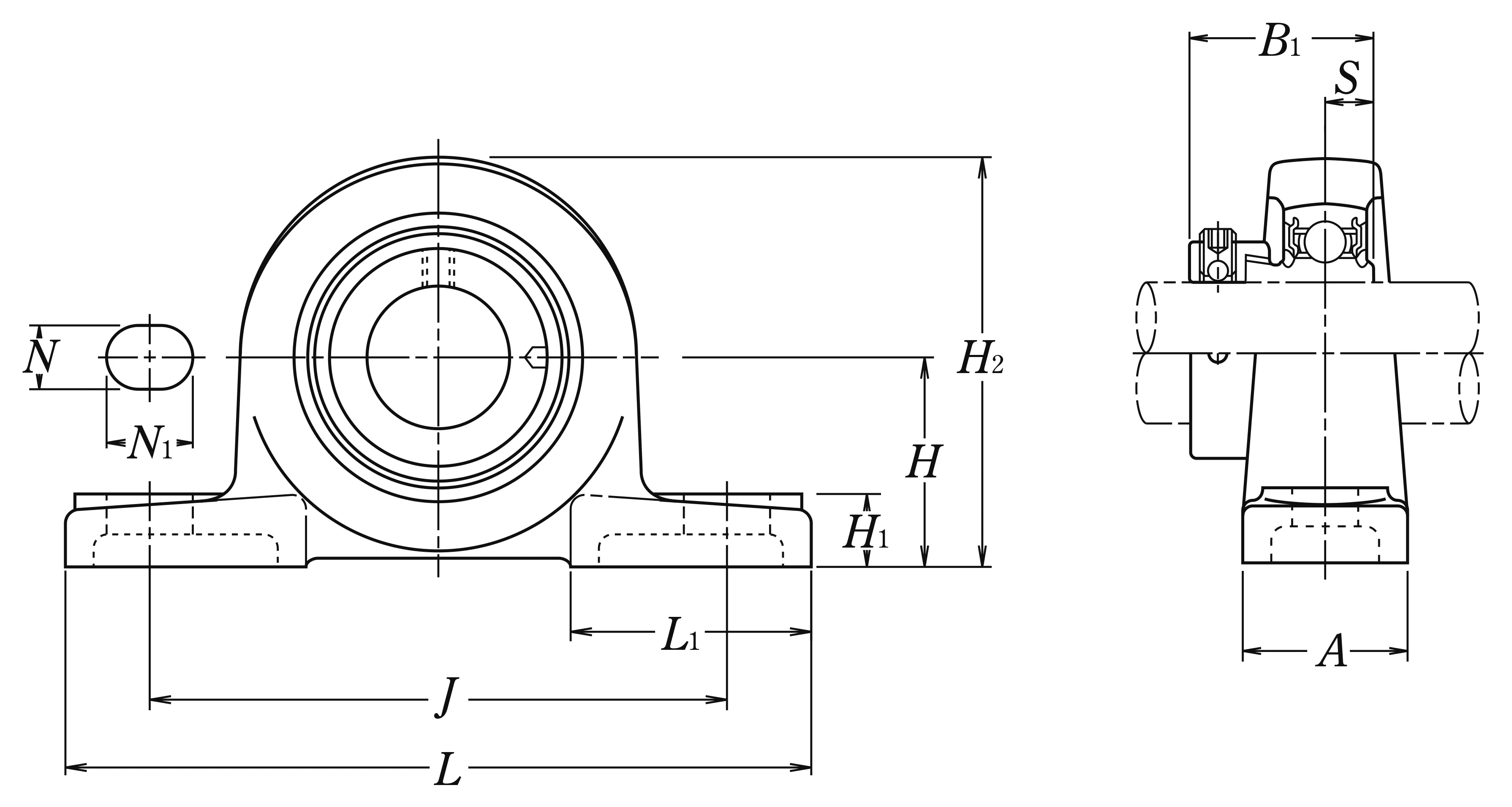

Nominal Dimensions

d	15	mm	Bore diameter
N1	16	mm	Length of attachment bolt hole
L	114	mm	Overall length
H	30.2	mm	Height of spherical seat centre
J	87	mm	Distance between attachment bolts
N	11	mm	Diameter of attachment bolt hole
A	25	mm	Base width
H1	12	mm	Distance between bottoms of piloting grooves
B1	28.6	mm	Width of inner ring
S	6.5	mm	Distance from Opposite side face of locking device to raceway centre
L1	38	mm	Foot width
H2	57	mm	Overall height

Mounting information

G

M 8

Bolt size

Basic Load Ratings

Cr	9.6	kN	Basic dynamic load rating
C0r	4.6	kN	Basic static load rating

Mass

mass

0.4

kg

Mass approx.
