C-UKFL328D1-

Designations

C-UKFL328D1

Included products

Bearing	UK328D1		Bearing
Housing	FL328D1		Housing

Associated products

Adapter sleeve

H2328

Adapter sleeve

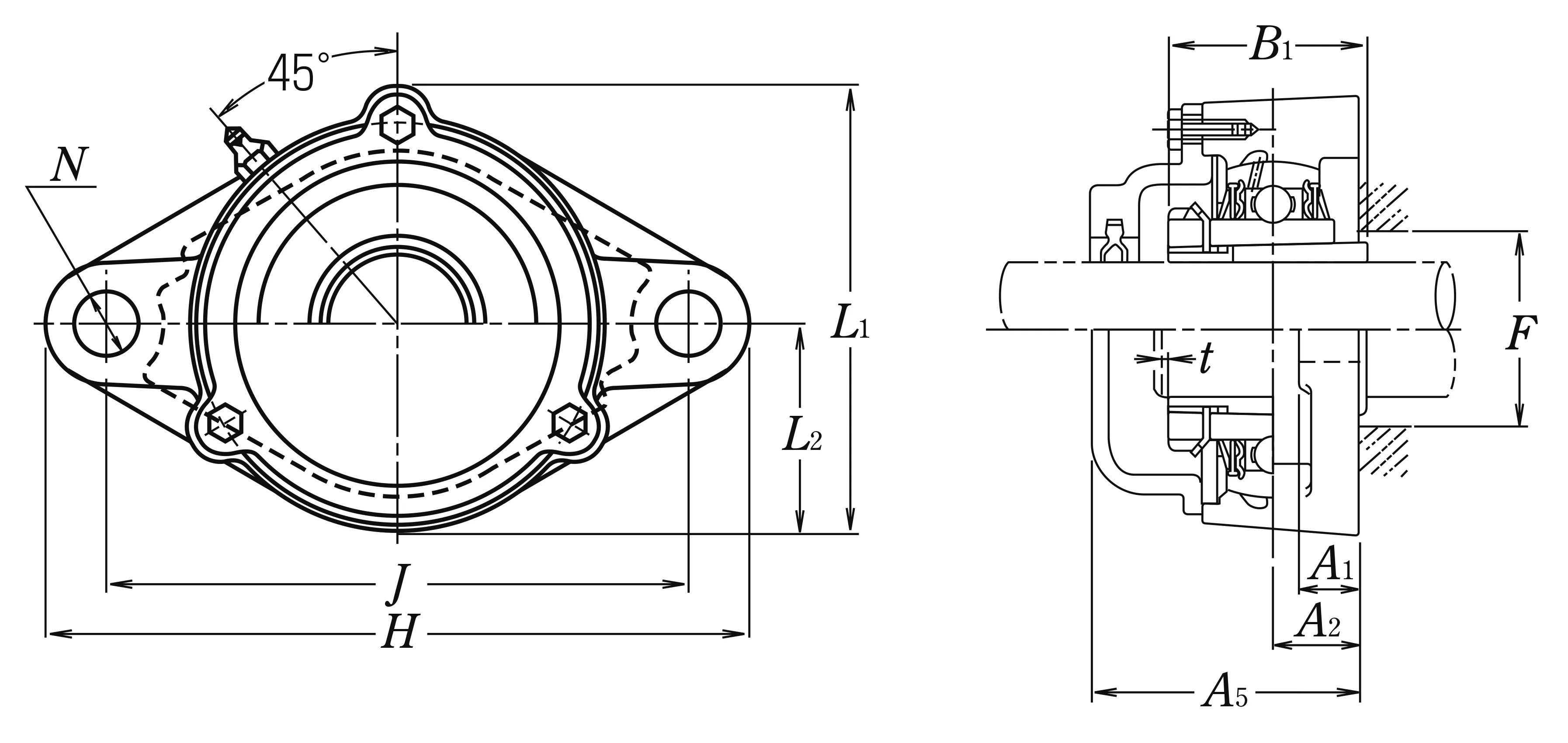

Nominal Dimensions

d	125	mm	Bore diameter
L,L1	410	mm	Overall height
J	500	mm	Distance between attachment bolts
N	51	mm	Diameter of attachment bolt hole
A2	75	mm	Flange width
A1	60	mm	Flange width
A5	192	mm	Width including end cover
B,B1,B2	131	mm	Width of inner ring
t	6	mm	Clearance
H	600	mm	Overall length
L2	200	mm	Height of spherical seat centre

Mounting information

G

M45

Bolt size

Basic Load Ratings

Cr	253	kN	Basic dynamic load rating
C0r	246	kN	Basic static load rating

Mass

mass

90

kg

Mass approx.
