UKFL324D1-

Designations

UKFL324D1

Included products

Bearing	UK324D1		Bearing
Housing	FL324D1		Housing

Associated products

Adapter sleeve

H2324

Adapter sleeve

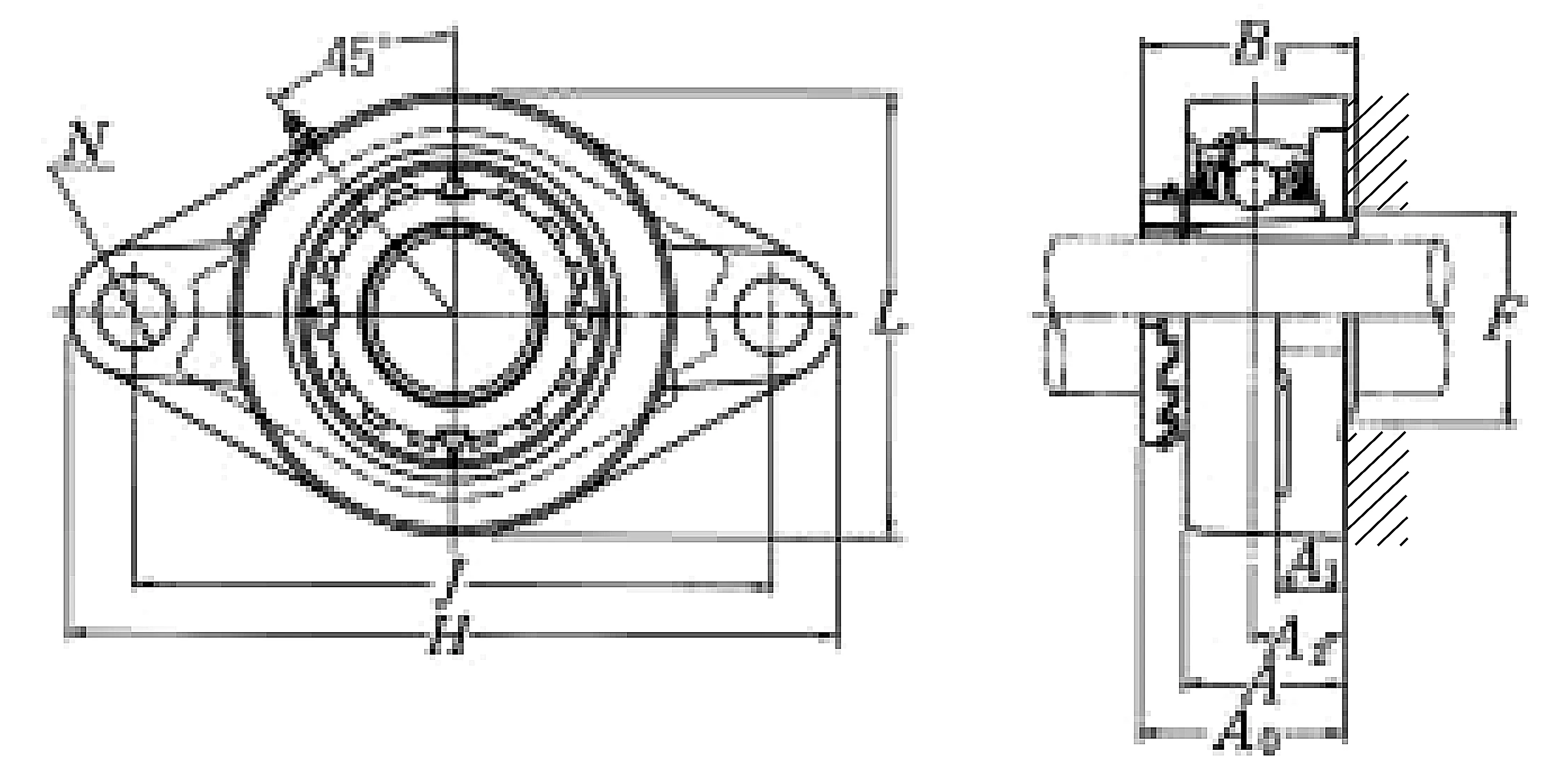

Nominal Dimensions

d	110	mm	Bore diameter
L,L1	330	mm	Overall height
J	430	mm	Distance between attachment bolts
N	47	mm	Diameter of attachment bolt hole
A2	65	mm	Flange width
A1	48	mm	Flange width
A	110	mm	Base width
B,B1,B2	112	mm	Width of inner ring
H	520	mm	Overall length

Mounting information

G

M42

Bolt size

Basic Load Ratings

Cr	207	kN	Basic dynamic load rating
C0r	185	kN	Basic static load rating

Mass

mass

47

kg

Mass approx.
