C-UKFL322D1-

Designations

C-UKFL322D1

Included products

Bearing	UK322D1		Bearing
Housing	FL322D1		Housing

Associated products

Adapter sleeve

H2322X

Adapter sleeve

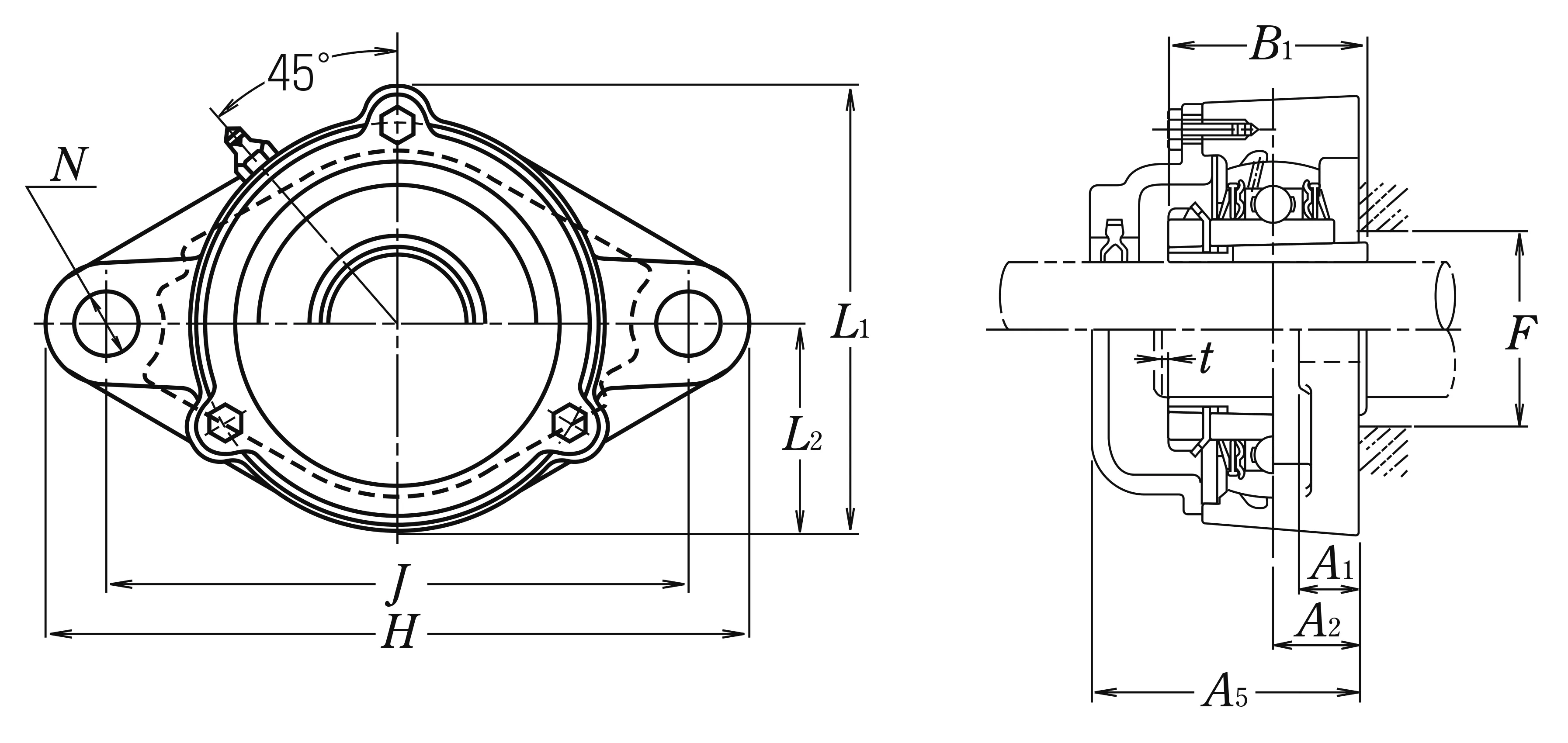

Nominal Dimensions

d	100	mm	Bore diameter
L,L1	315	mm	Overall height
J	390	mm	Distance between attachment bolts
N	44	mm	Diameter of attachment bolt hole
A2	60	mm	Flange width
A1	42	mm	Flange width
A5	160	mm	Width including end cover
B,B1,B2	105	mm	Width of inner ring
t	5	mm	Clearance
H	470	mm	Overall length
L2	150	mm	Height of spherical seat centre

Mounting information

G

M39

Bolt size

Basic Load Ratings

Cr	205	kN	Basic dynamic load rating
C0r	179	kN	Basic static load rating

Mass

mass

41

kg

Mass approx.
