UKFL318D1-

Designations

UKFL318D1

Included products

Bearing	UK318D1		Bearing
Housing	FL318D1		Housing

Associated products

Adapter sleeve

H2318X

Adapter sleeve

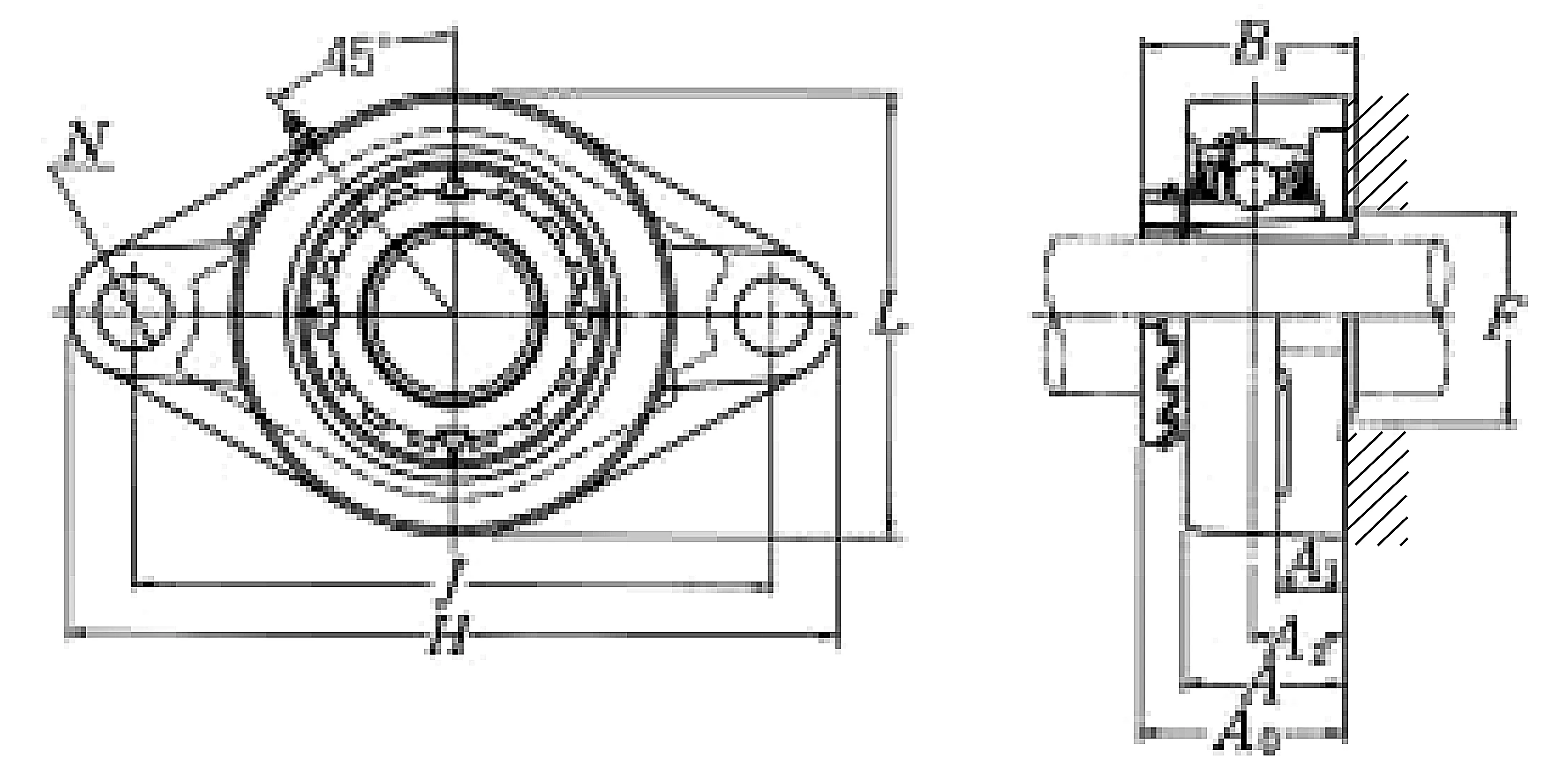

Nominal Dimensions

d	80	mm	Bore diameter
L,L1	235	mm	Overall height
J	315	mm	Distance between attachment bolts
N	38	mm	Diameter of attachment bolt hole
A2	44	mm	Flange width
A1	36	mm	Flange width
A	76	mm	Base width
B,B1,B2	86	mm	Width of inner ring
H	385	mm	Overall length

Mounting information

G

M33

Bolt size

Basic Load Ratings

Cr	143	kN	Basic dynamic load rating
C0r	107	kN	Basic static load rating

Mass

mass

18

kg

Mass approx.
