UKFL317D1-

Designations

UKFL317D1

Included products

Bearing	UK317D1		Bearing
Housing	FL317D1		Housing

Associated products

Adapter sleeve

H2317X

Adapter sleeve

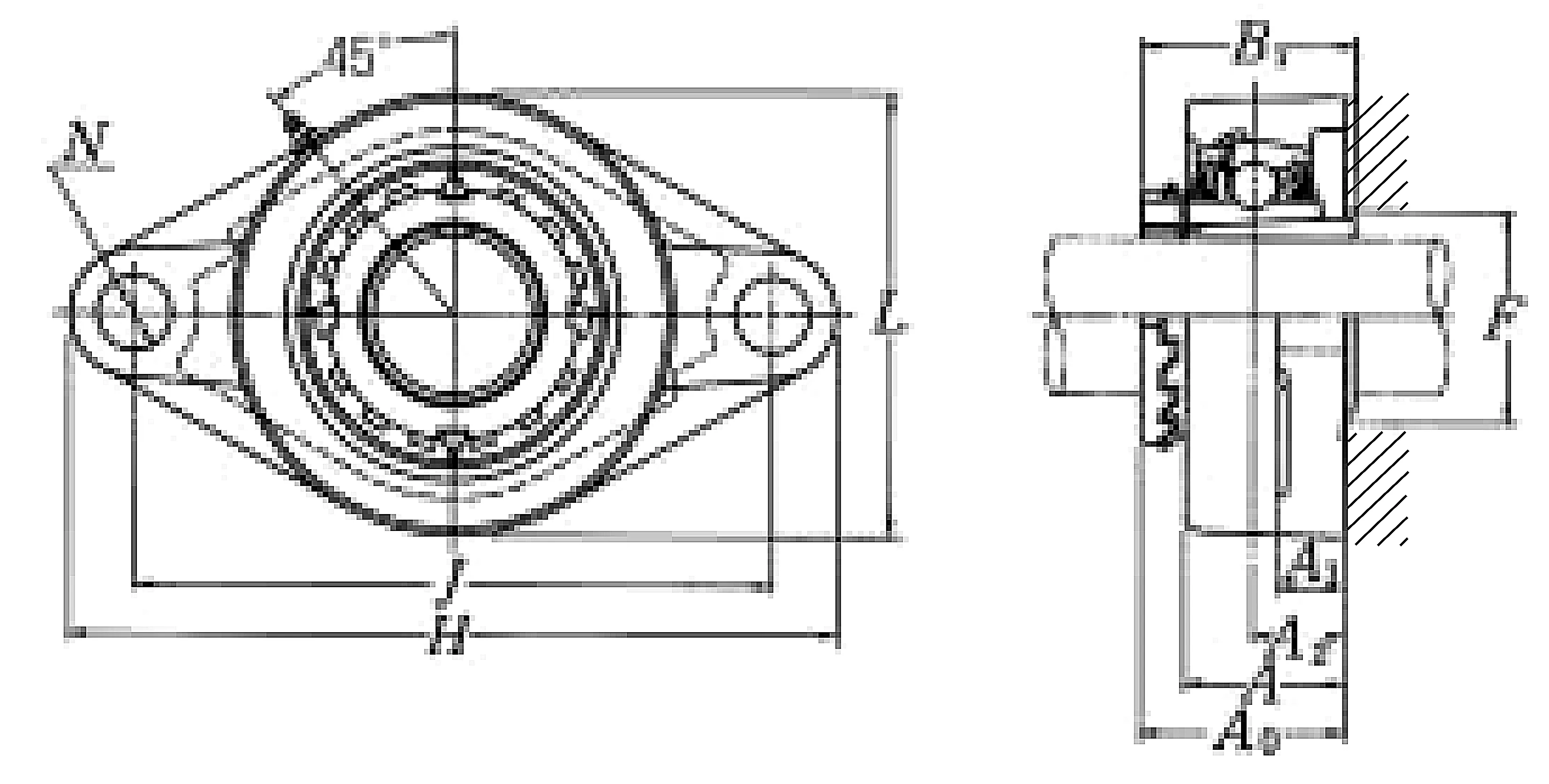

Nominal Dimensions

d	75	mm	Bore diameter
L,L1	220	mm	Overall height
J	300	mm	Distance between attachment bolts
N	38	mm	Diameter of attachment bolt hole
A2	44	mm	Flange width
A1	32	mm	Flange width
A	74	mm	Base width
B,B1,B2	82	mm	Width of inner ring
H	370	mm	Overall length

Mounting information

G

M33

Bolt size

Basic Load Ratings

Cr	133	kN	Basic dynamic load rating
C0r	97	kN	Basic static load rating

Mass

mass

15

kg

Mass approx.
