C-UKFL316D1-

Designations

C-UKFL316D1

Included products

Bearing	UK316D1		Bearing
Housing	FL316D1		Housing

Associated products

Adapter sleeve

H2316X

Adapter sleeve

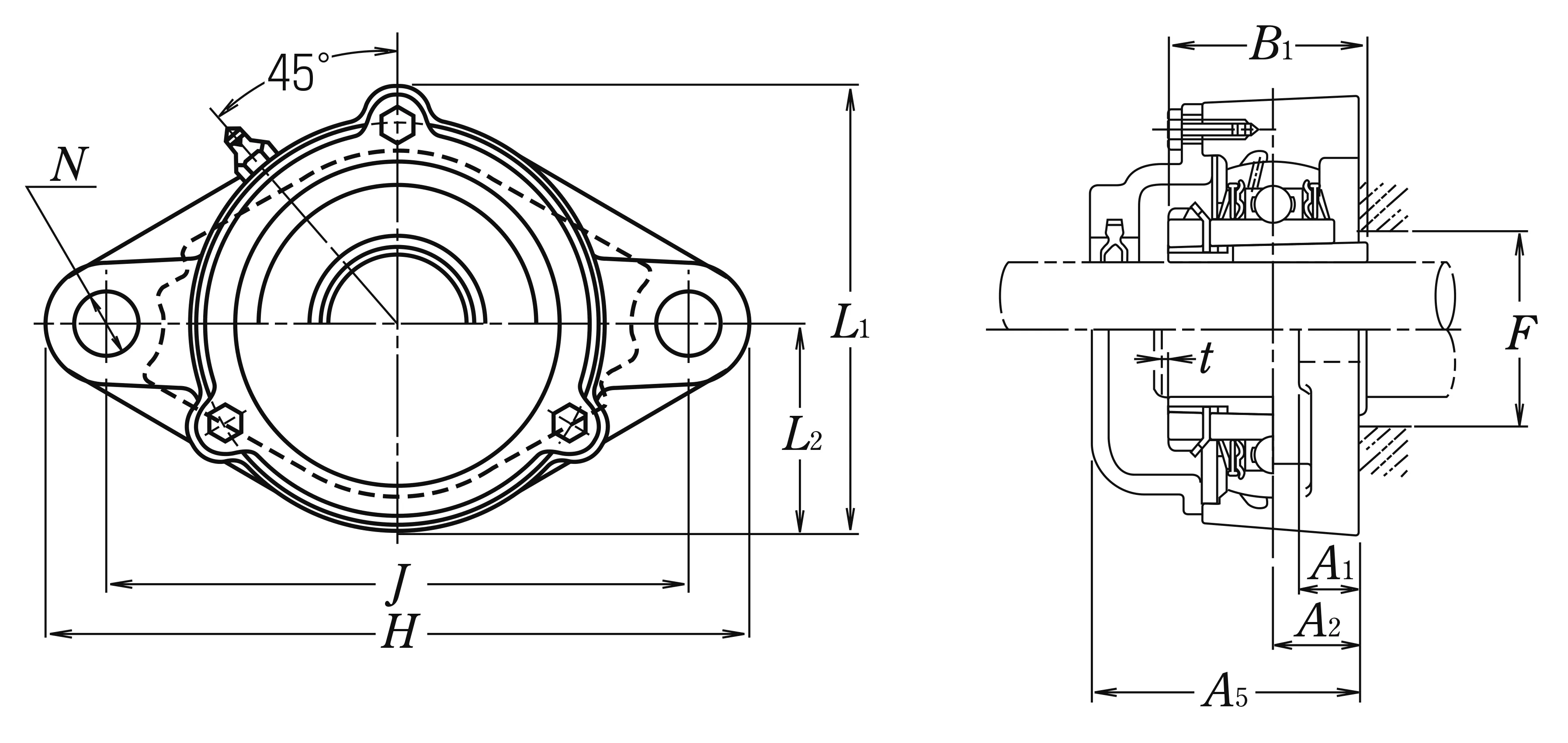

Nominal Dimensions

d	70	mm	Bore diameter
L,L1	222	mm	Overall height
J	285	mm	Distance between attachment bolts
N	38	mm	Diameter of attachment bolt hole
A2	38	mm	Flange width
A1	32	mm	Flange width
A5	116	mm	Width including end cover
B,B1,B2	78	mm	Width of inner ring
t	4	mm	Clearance
H	355	mm	Overall length
L2	105	mm	Height of spherical seat centre

Mounting information

G

M33

Bolt size

Basic Load Ratings

Cr	123	kN	Basic dynamic load rating
C0r	86.5	kN	Basic static load rating

Mass

mass

17

kg

Mass approx.
