UKFL216D1-

Designations

UKFL216D1

Included products

Bearing	UK216D1		Bearing
Housing	FL216D1		Housing

Associated products

Adapter sleeve

H2316X

Adapter sleeve

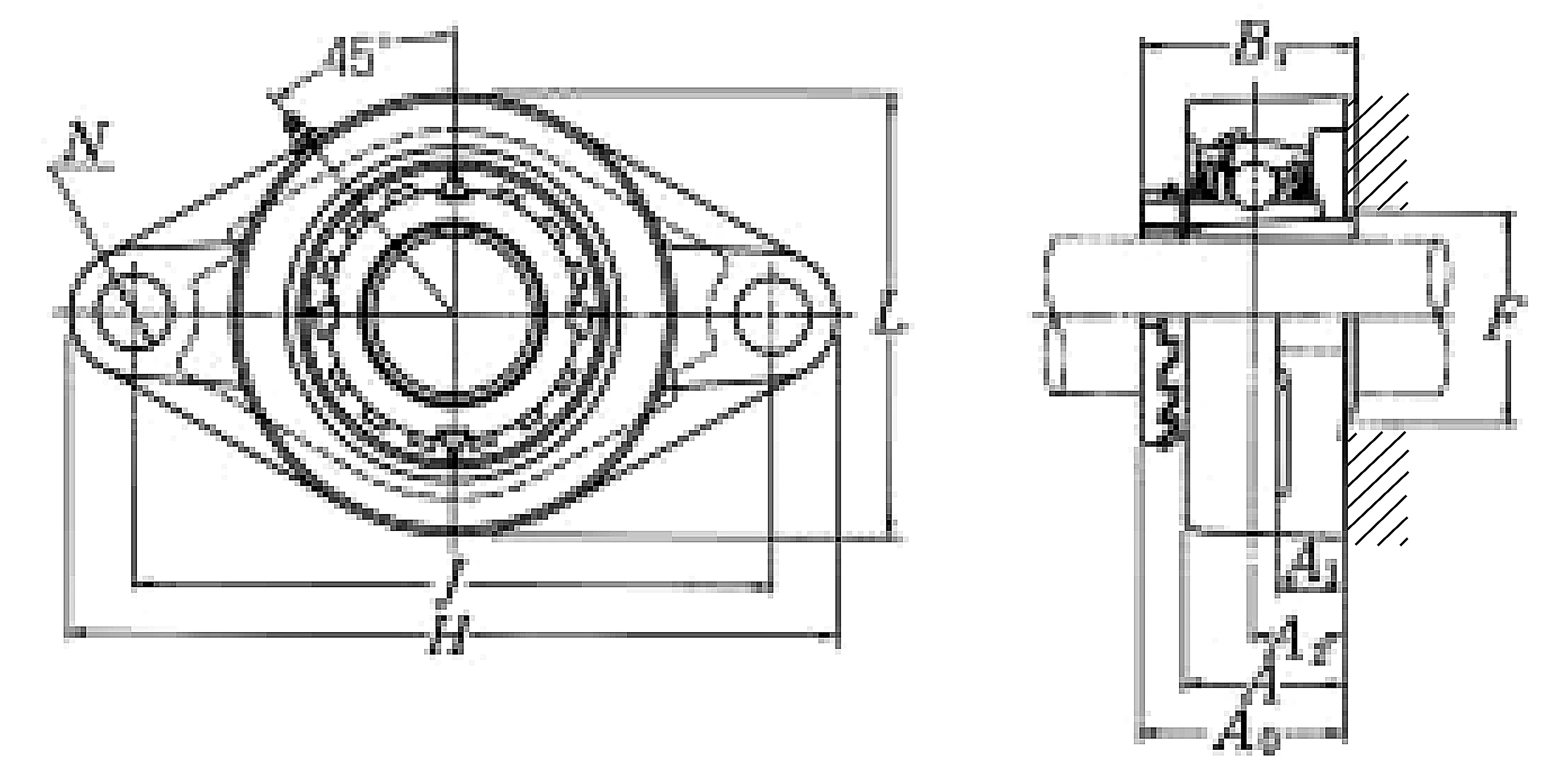

Nominal Dimensions

d	70	mm	Bore diameter
L,L1	180	mm	Overall height
J	233	mm	Distance between attachment bolts
N	34	mm	Diameter of attachment bolt hole
A2	34	mm	Flange width
A1	22	mm	Flange width
A	58	mm	Base width
A0	73.5	mm	Overall width
B,B1,B2	78	mm	Width of inner ring
F	90	mm	Diameter of housing abutment
H	290	mm	Overall length

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	72.5	kN	Basic dynamic load rating
C0r	53	kN	Basic static load rating

Mass

mass

7.9

kg

Mass approx.
