CM-UKFL315D1-

Designations

CM-UKFL315D1

Included products

Bearing	UK315D1		Bearing
Housing	FL315D1		Housing

Associated products

Adapter sleeve

H2315X

Adapter sleeve

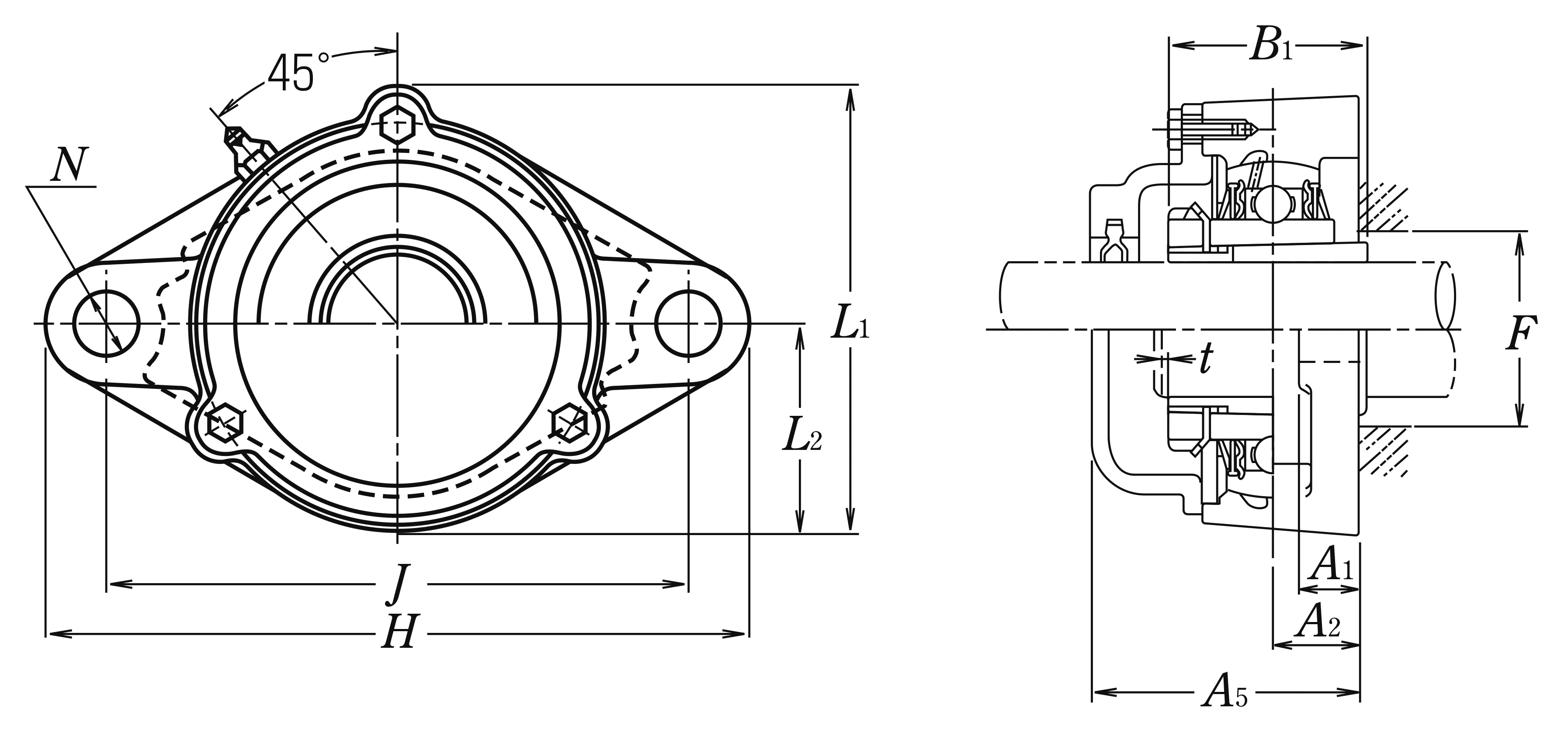

Nominal Dimensions

d	65	mm	Bore diameter
L,L1	210	mm	Overall height
J	260	mm	Distance between attachment bolts
N	39	mm	Diameter of attachment bolt hole
A2	39	mm	Flange width
A1	30	mm	Flange width
A5	114	mm	Width including end cover
B,B1,B2	73	mm	Width of inner ring
t	4	mm	Clearance
H	320	mm	Overall length
L2	97.5	mm	Height of spherical seat centre

Mounting information

G

M30

Bolt size

Basic Load Ratings

Cr	113	kN	Basic dynamic load rating
C0r	77	kN	Basic static load rating

Mass

mass

13

kg

Mass approx.
