UKFL315D1-

Designations

UKFL315D1

Included products

Bearing	UK315D1		Bearing
Housing	FL315D1		Housing

Associated products

Adapter sleeve

H2315X

Adapter sleeve

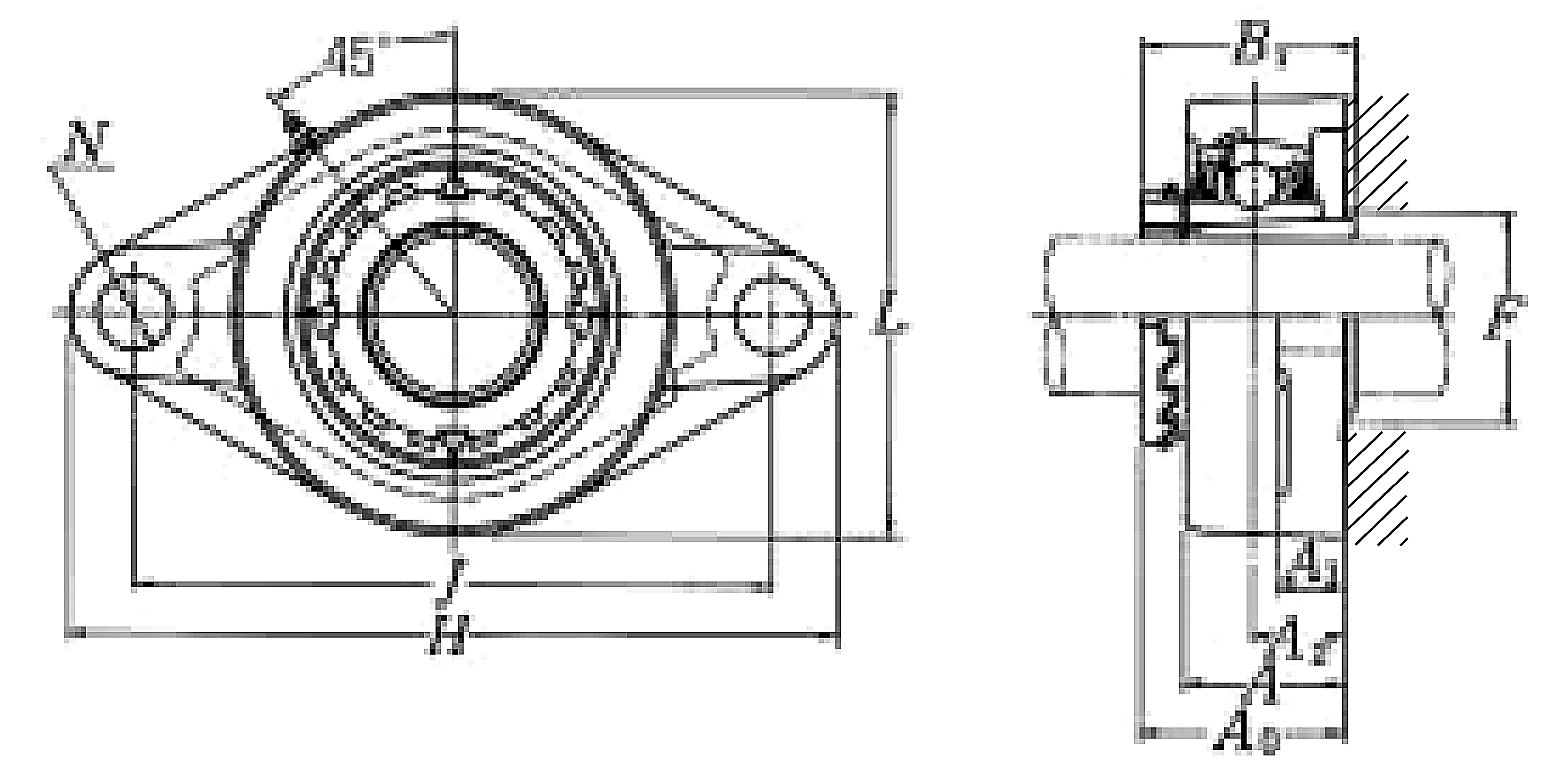

Nominal Dimensions

d	65	mm	Bore diameter
L,L1	195	mm	Overall height
J	260	mm	Distance between attachment bolts
N	39	mm	Diameter of attachment bolt hole
A2	39	mm	Flange width
A1	30	mm	Flange width
A	66	mm	Base width
A0	81.5	mm	Overall width
B,B1,B2	73	mm	Width of inner ring
H	320	mm	Overall length

Mounting information

G

M30

Bolt size

Basic Load Ratings

Cr	113	kN	Basic dynamic load rating
C0r	77	kN	Basic static load rating

Mass

mass

9.9

kg

Mass approx.
