UKFL313D1-

Designations

UKFL313D1

Included products

Bearing	UK313D1		Bearing
Housing	FL313D1		Housing

Associated products

Adapter sleeve

H2313X

Adapter sleeve

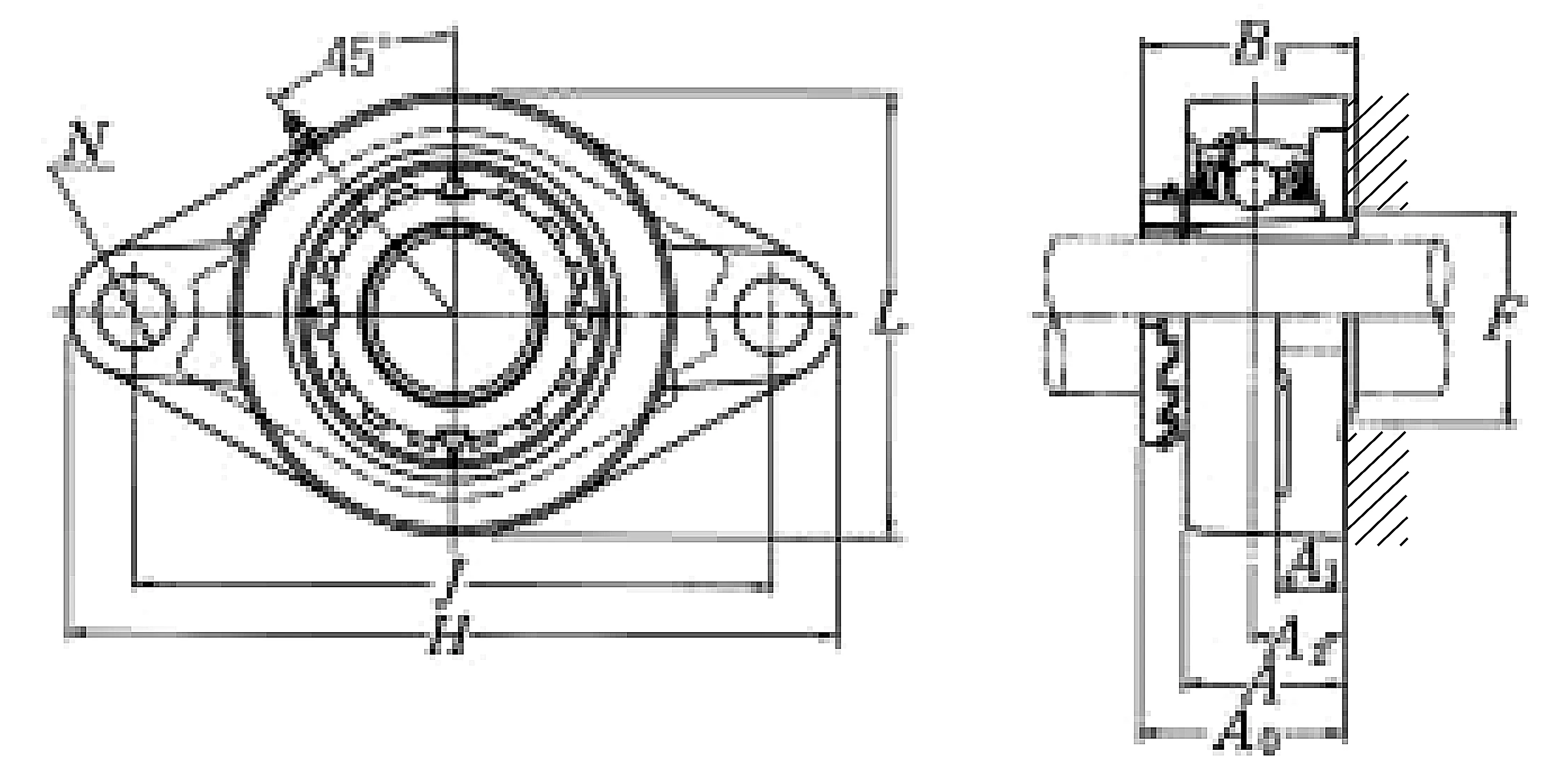

Nominal Dimensions

d	60	mm	Bore diameter
L,L1	175	mm	Overall height
J	240	mm	Distance between attachment bolts
N	33	mm	Diameter of attachment bolt hole
A2	33	mm	Flange width
A1	25	mm	Flange width
A	58	mm	Base width
A0	71.5	mm	Overall width
B,B1,B2	65	mm	Width of inner ring
H	295	mm	Overall length

Mounting information

G

M27

Bolt size

Basic Load Ratings

Cr	92.5	kN	Basic dynamic load rating
C0r	60	kN	Basic static load rating

Mass

mass

7.4

kg

Mass approx.
