C-UKFL213D1-

Designations

C-UKFL213D1

Included products

Bearing	UK213D1		Bearing
Housing	FL213D1		Housing

Associated products

Adapter sleeve

H2313X

Adapter sleeve

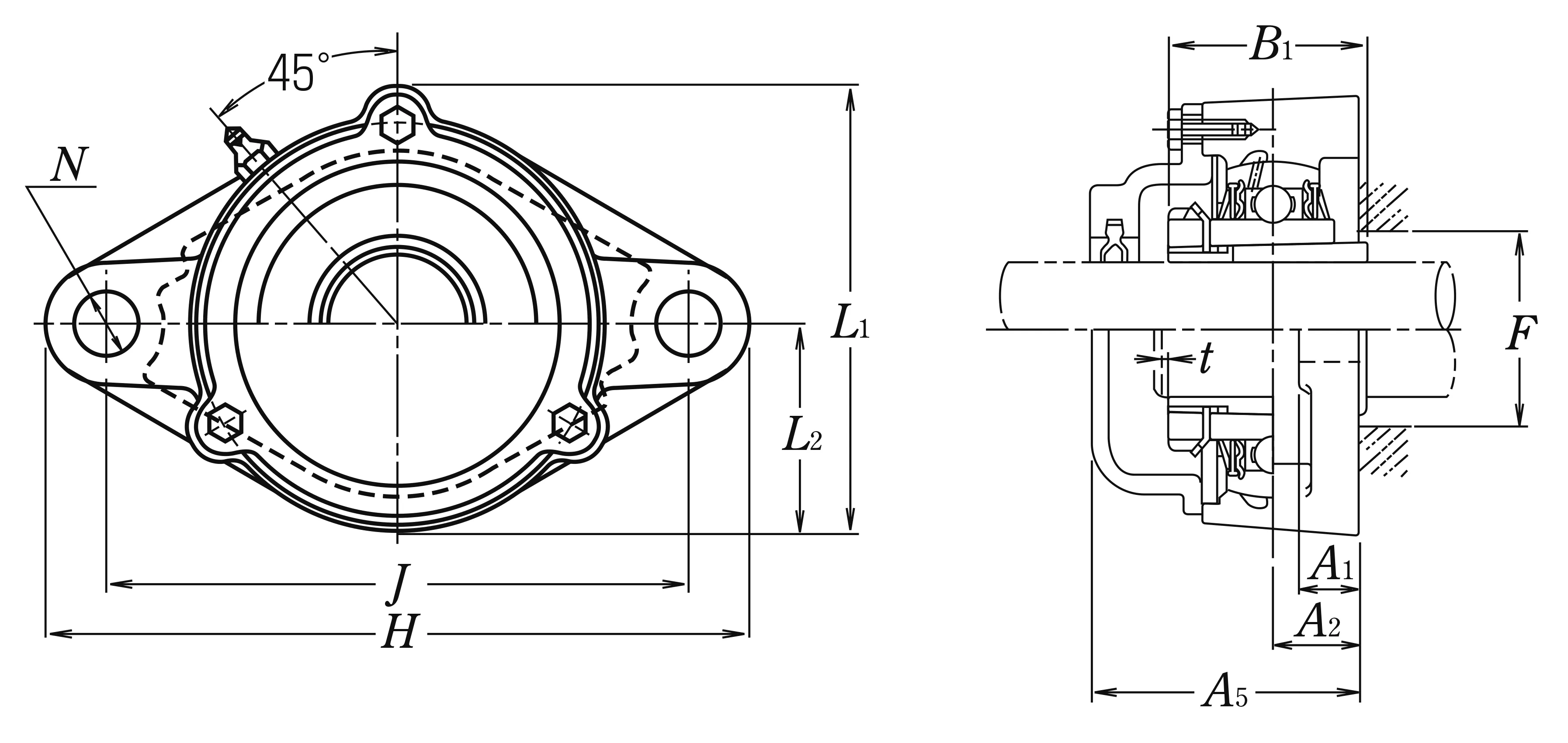

Nominal Dimensions

d	60	mm	Bore diameter
L,L1	157	mm	Overall height
J	210	mm	Distance between attachment bolts
N	30	mm	Diameter of attachment bolt hole
A2	30	mm	Flange width
A1	22	mm	Flange width
A5	90	mm	Width including end cover
B,B1,B2	65	mm	Width of inner ring
F	74	mm	Diameter of housing abutment
t	4	mm	Clearance
H	258	mm	Overall length
L2	77.5	mm	Height of spherical seat centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	57.5	kN	Basic dynamic load rating
C0r	40	kN	Basic static load rating

Mass

mass

6

kg

Mass approx.
