Z-UKFL213D1-

Designations

Z-UKFL213D1

Included products

Bearing	UK213D1		Bearing
Housing	FL213D1		Housing

Associated products

Adapter sleeve

H2313X

Adapter sleeve

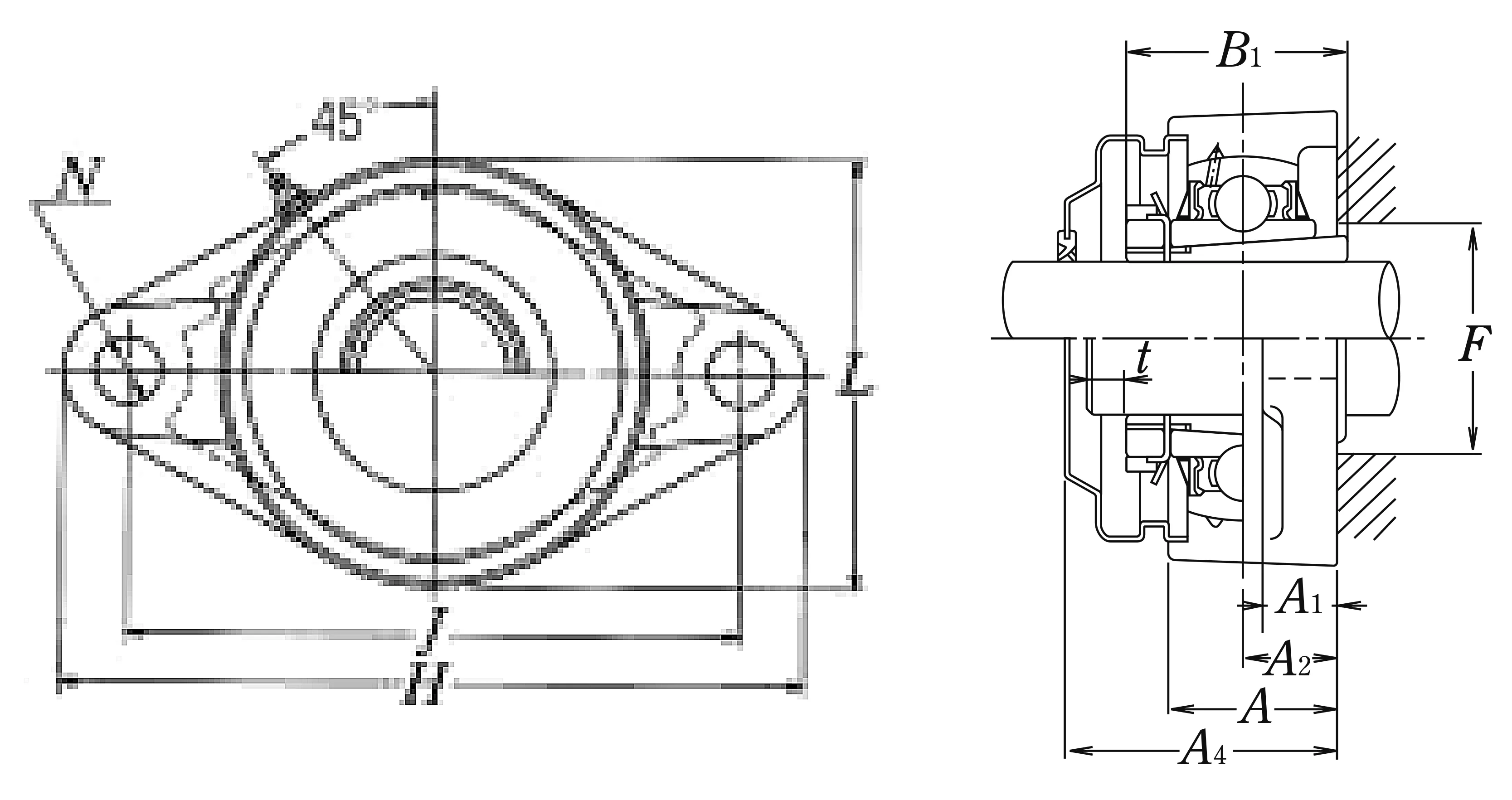

Nominal Dimensions

d	60	mm	Bore diameter
L,L1	155	mm	Overall height
J	210	mm	Distance between attachment bolts
N	30	mm	Diameter of attachment bolt hole
A2	30	mm	Flange width
A1	22	mm	Flange width
A	50	mm	Base width
A4	76	mm	Width including end cover
B,B1,B2	65	mm	Width of inner ring
F	74	mm	Diameter of housing abutment
t	4	mm	Clearance
H	258	mm	Overall length

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	57.5	kN	Basic dynamic load rating
C0r	40	kN	Basic static load rating

Mass

mass

5.4

kg

Mass approx.
