C-UKFL212D1-

Designations

C-UKFL212D1

Included products

Bearing	UK212D1		Bearing
Housing	FL212D1		Housing

Associated products

Adapter sleeve

H2312X

Adapter sleeve

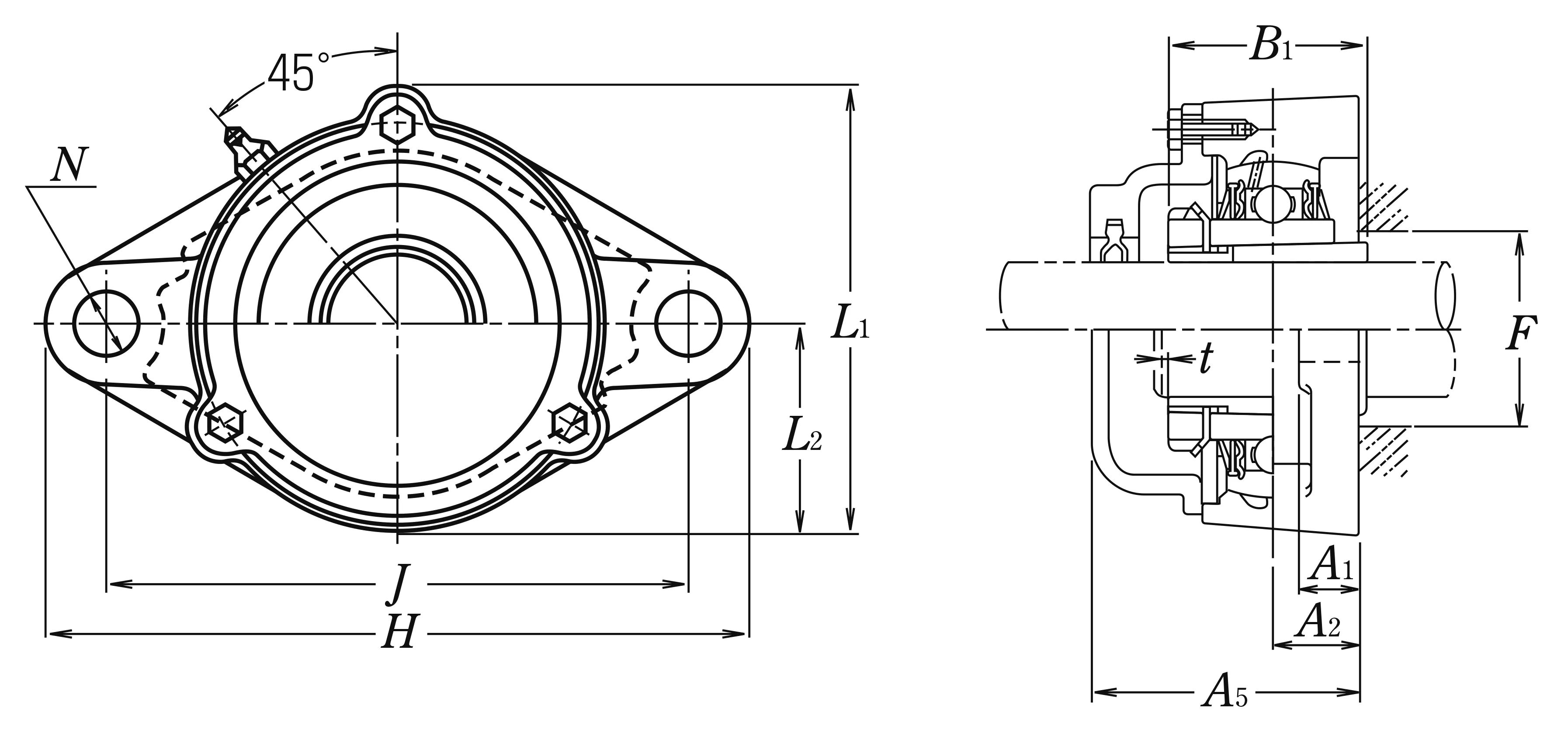

Nominal Dimensions

d	55	mm	Bore diameter
L,L1	144	mm	Overall height
J	202	mm	Distance between attachment bolts
N	29	mm	Diameter of attachment bolt hole
A2	29	mm	Flange width
A1	18	mm	Flange width
A5	86	mm	Width including end cover
B,B1,B2	62	mm	Width of inner ring
F	69	mm	Diameter of housing abutment
t	4	mm	Clearance
H	250	mm	Overall length
L2	70	mm	Height of spherical seat centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	52.5	kN	Basic dynamic load rating
C0r	36	kN	Basic static load rating

Mass

mass

4.7

kg

Mass approx.
