CM-UCFL311D1-

Designations

CM-UCFL311D1

Included products

Bearing	UC311D1		Bearing
Housing	FL311D1		Housing

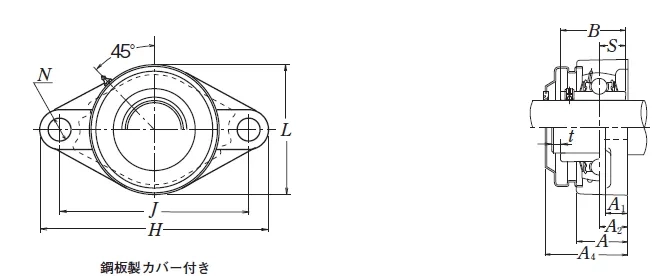

Nominal Dimensions

d	55	mm	Bore diameter
L,L1	162	mm	Overall height
J	198	mm	Distance between attachment bolts
N	25	mm	Diameter of attachment bolt hole
A2	30	mm	Flange width
A1	20	mm	Flange width
A5	92	mm	Width including end cover
B,B1,B2	66	mm	Width of inner ring
t	4	mm	Clearance
H	250	mm	Overall length
L2	75	mm	Height of spherical seat centre
S	25	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	71.5	kN	Basic dynamic load rating
C0r	45	kN	Basic static load rating

Mass

mass

5.9

kg

Mass approx.
