UELFLU211D1-

Designations

UELFLU211D1

Included products

Bearing	UEL211D1		Bearing
Housing	FLU211D1		Housing

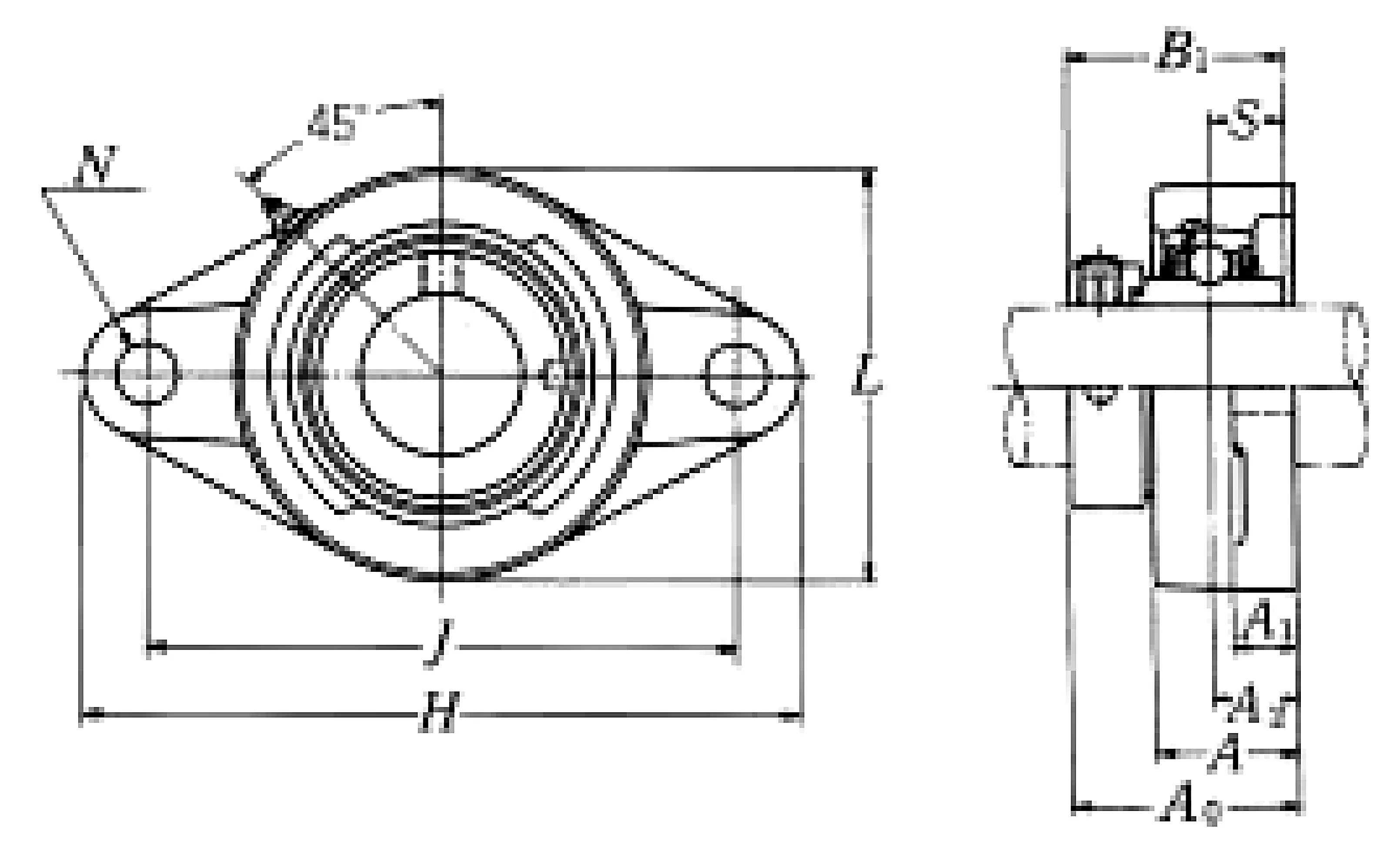

Nominal Dimensions

d	55	mm	Bore diameter
L,L1	134	mm	Overall height
J	184	mm	Distance between attachment bolts
N	18	mm	Diameter of attachment bolt hole
A2	31	mm	Flange width
A1	21	mm	Flange width
A	49	mm	Base width
A0	74.6	mm	Overall width
B,B1,B2	71.4	mm	Width of inner ring
H	217	mm	Overall length
S	27.75	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	43.5	kN	Basic dynamic load rating
C0r	29.2	kN	Basic static load rating

Mass

mass

3.6

kg

Mass approx.
