UCFA211D1-

Designations

UCFA211D1

Included products

Bearing	UC211D1		Bearing
Housing	FA211D1		Housing

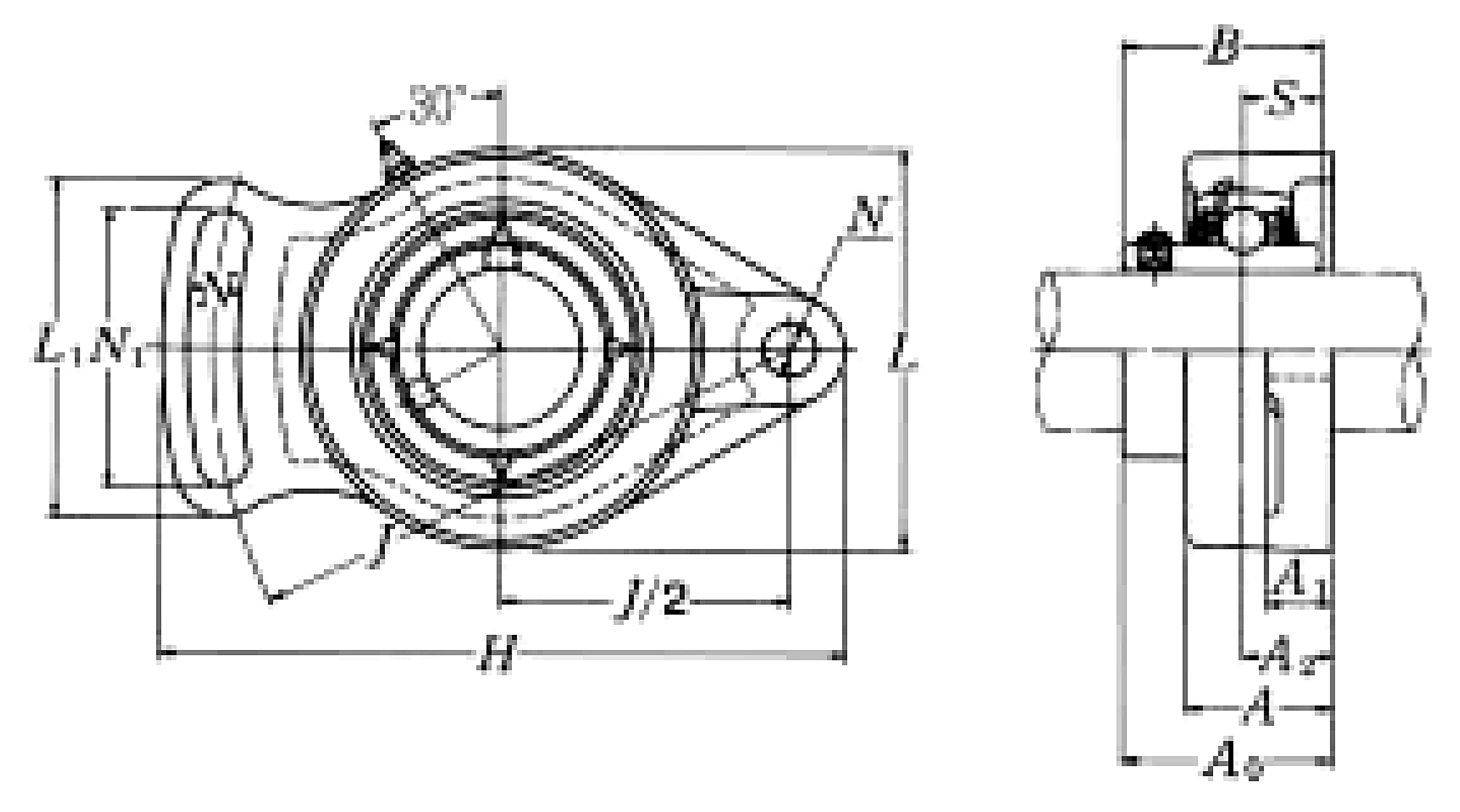

Nominal Dimensions

d	55	mm	Bore diameter
N1	85	mm	Length of attachment bolt hole
L,L1	130	mm	Overall height
J	182	mm	Distance between attachment bolts
N	17	mm	Diameter of attachment bolt hole
A2	26	mm	Flange width
A1	20	mm	Flange width
A	43	mm	Base width
A0	59.4	mm	Overall width
B,B1,B2	55.6	mm	Width of inner ring
H	216	mm	Overall length
S	22.2	mm	Distance from Opposite side face of locking device to raceway centre
L1	102	mm	Foot width

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	43.5	kN	Basic dynamic load rating
C0r	29.2	kN	Basic static load rating

Mass

mass

2.9

kg

Mass approx.
