UKFL311D1-

Designations

UKFL311D1

Included products

Bearing	UK311D1		Bearing
Housing	FL311D1		Housing

Associated products

Adapter sleeve

H2311X

Adapter sleeve

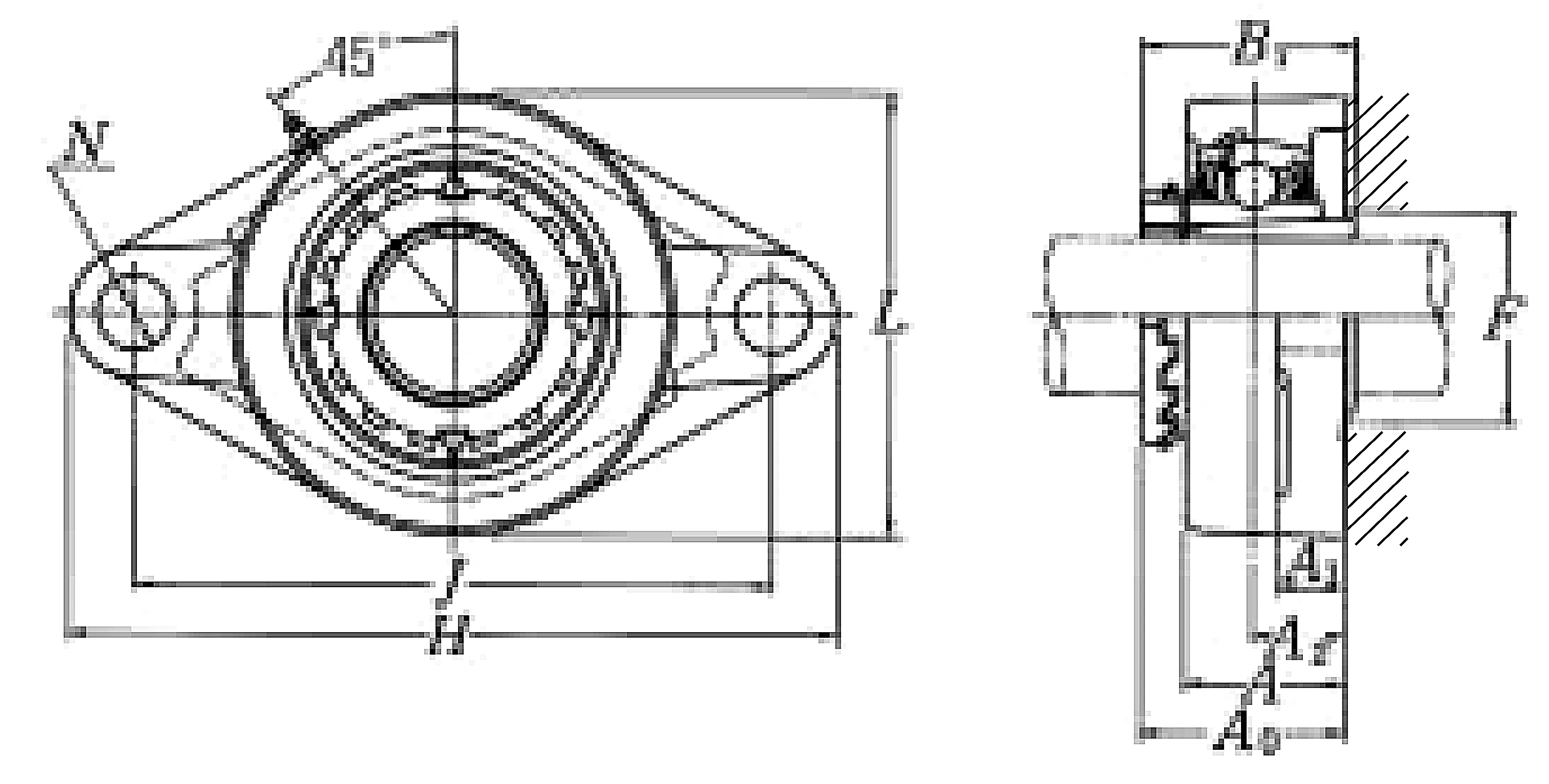

Nominal Dimensions

d	50	mm	Bore diameter
L,L1	150	mm	Overall height
J	198	mm	Distance between attachment bolts
N	30	mm	Diameter of attachment bolt hole
A2	30	mm	Flange width
A1	20	mm	Flange width
A	52	mm	Base width
A0	64	mm	Overall width
B,B1,B2	59	mm	Width of inner ring
H	250	mm	Overall length

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	71.5	kN	Basic dynamic load rating
C0r	45	kN	Basic static load rating

Mass

mass

4.6

kg

Mass approx.
