UCFL309D1-

Designations

UCFL309D1

Included products

Bearing	UC309D1		Bearing
Housing	FL309D1		Housing

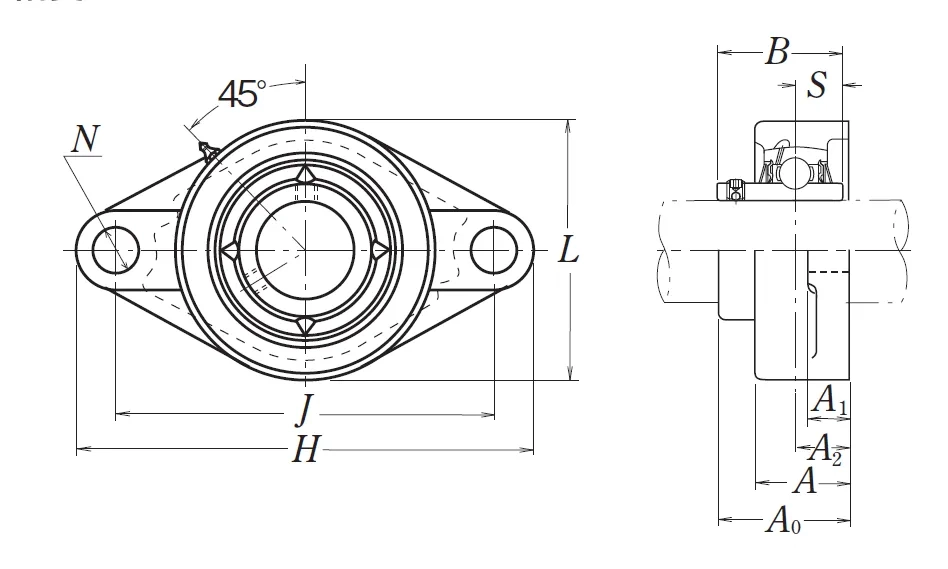

Nominal Dimensions

d	45	mm	Bore diameter
L,L1	125	mm	Overall height
J	177	mm	Distance between attachment bolts
N	25	mm	Diameter of attachment bolt hole
A2	25	mm	Flange width
A1	18	mm	Flange width
A	44	mm	Base width
A0	60	mm	Overall width
B,B1,B2	57	mm	Width of inner ring
H	230	mm	Overall length
S	22	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	53	kN	Basic dynamic load rating
C0r	32	kN	Basic static load rating

Mass

mass

3

kg

Mass approx.
