CM-UKFL210D1-

Designations

CM-UKFL210D1

Included products

Bearing	UK210D1		Bearing
Housing	FL210D1		Housing

Associated products

Adapter sleeve

H2310X

Adapter sleeve

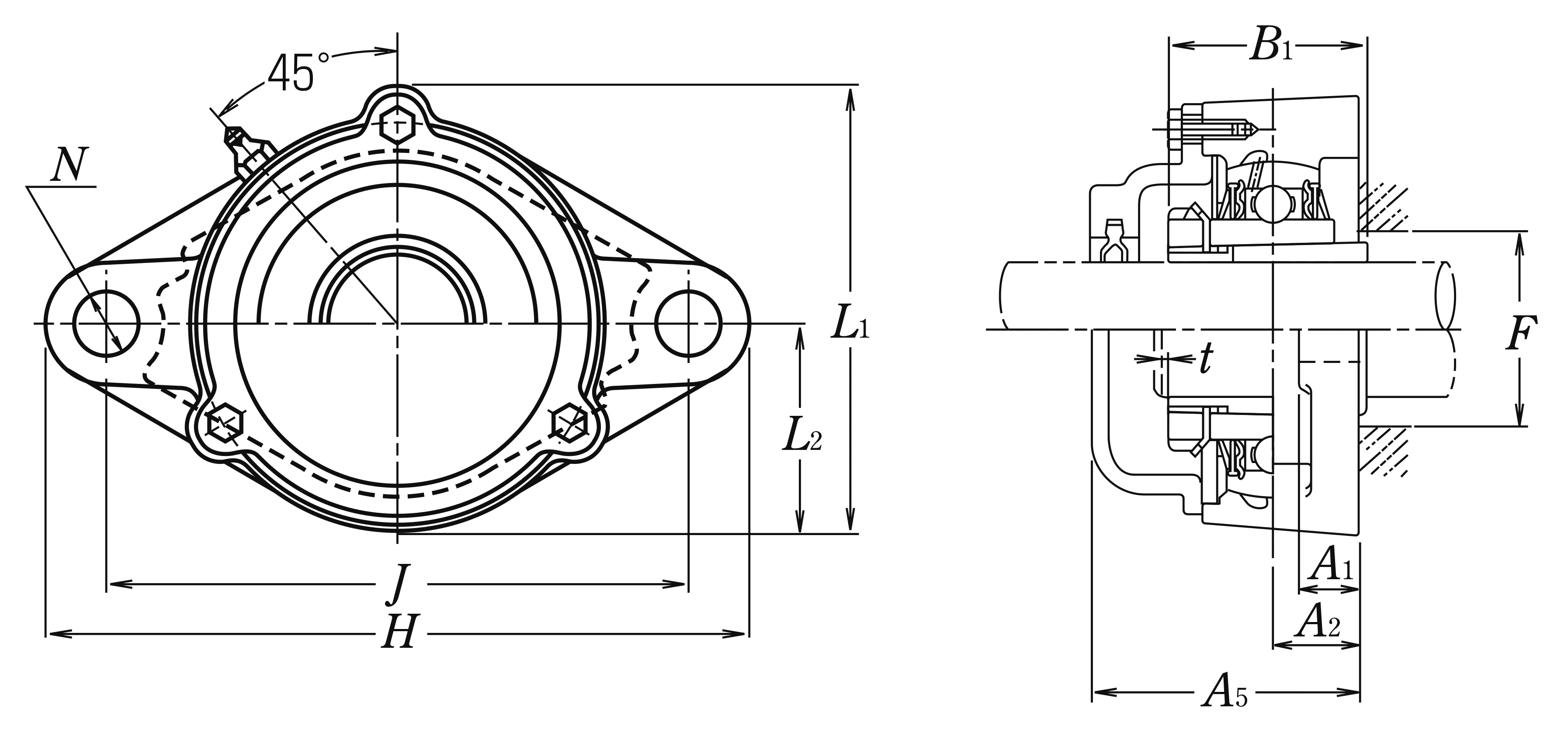

Nominal Dimensions

d	45	mm	Bore diameter
L,L1	120	mm	Overall height
J	157	mm	Distance between attachment bolts
N	22	mm	Diameter of attachment bolt hole
A2	22	mm	Flange width
A1	16	mm	Flange width
A5	72	mm	Width including end cover
B,B1,B2	55	mm	Width of inner ring
F	57	mm	Diameter of housing abutment
t	3	mm	Clearance
H	197	mm	Overall length
L2	57.5	mm	Height of spherical seat centre

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	35	kN	Basic dynamic load rating
C0r	23.2	kN	Basic static load rating

Mass

mass

2.9

kg

Mass approx.
