C-UKFL309D1-

Designations

C-UKFL309D1

Included products

Bearing	UK309D1		Bearing
Housing	FL309D1		Housing

Associated products

Adapter sleeve

H2309X

Adapter sleeve

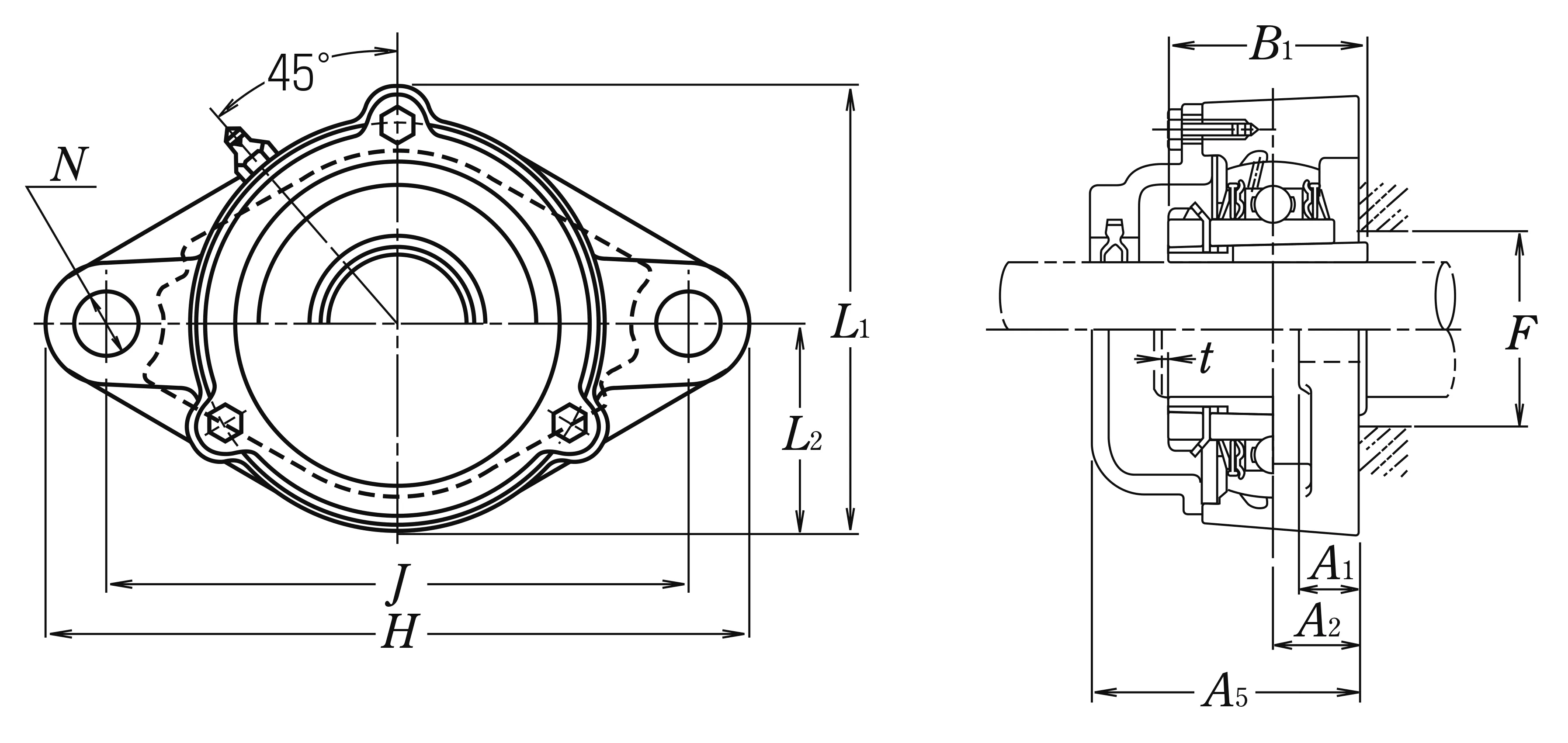

Nominal Dimensions

d	40	mm	Bore diameter
L,L1	135	mm	Overall height
J	177	mm	Distance between attachment bolts
N	25	mm	Diameter of attachment bolt hole
A2	25	mm	Flange width
A1	18	mm	Flange width
A5	80	mm	Width including end cover
B,B1,B2	50	mm	Width of inner ring
t	3	mm	Clearance
H	230	mm	Overall length
L2	62.5	mm	Height of spherical seat centre

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	53	kN	Basic dynamic load rating
C0r	32	kN	Basic static load rating

Mass

mass

3.9

kg

Mass approx.
