UKFE207D1-

Designations

UKFE207D1

Included products

Bearing	UK207D1		Bearing
Housing	FE207D1		Housing

Associated products

Adapter sleeve

H2307X

Adapter sleeve

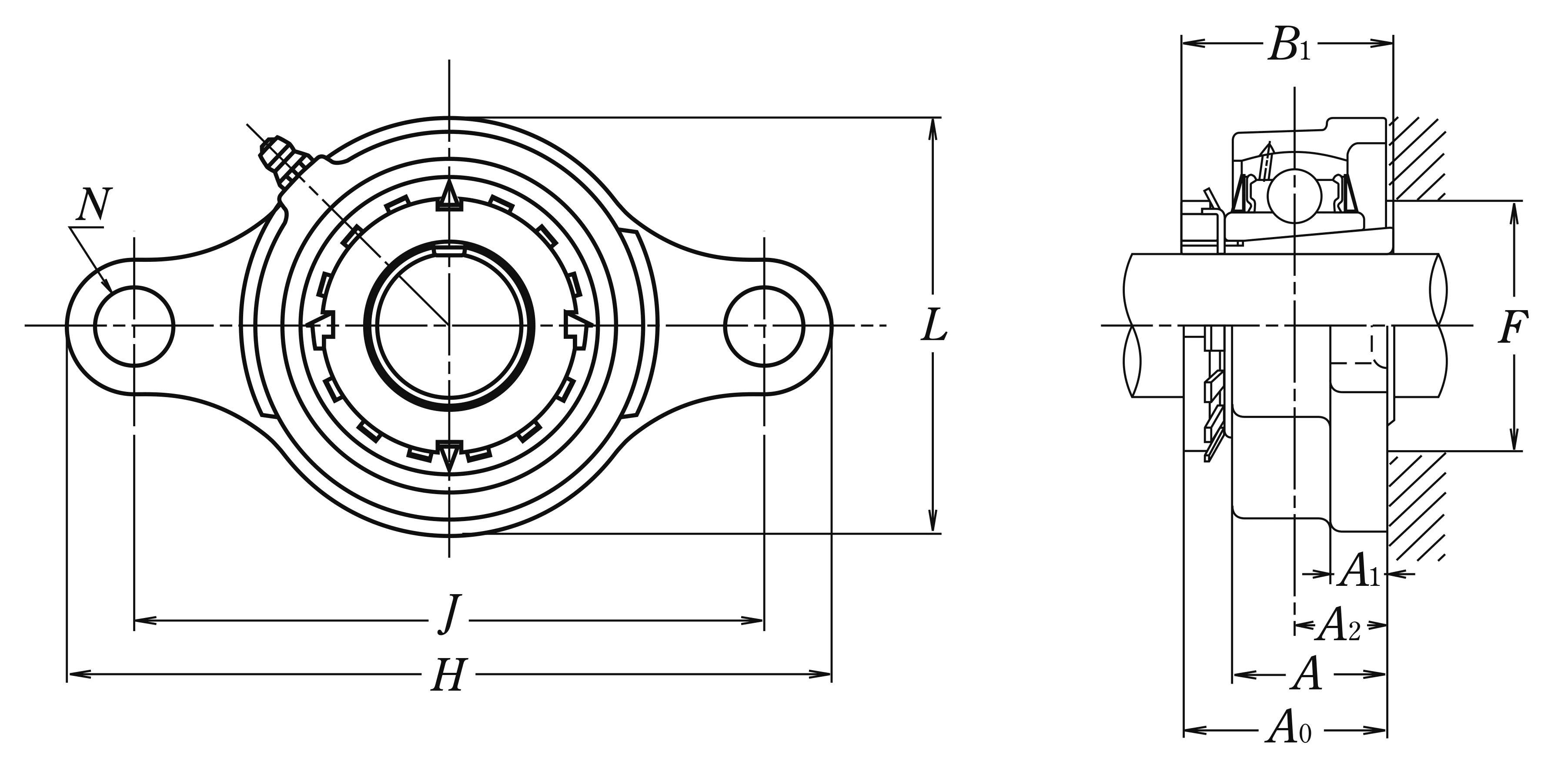

Nominal Dimensions

d	30	mm	Bore diameter
L,L1	86	mm	Overall height
J	130	mm	Distance between attachment bolts
N	16	mm	Diameter of attachment bolt hole
A2	19	mm	Flange width
A1	12	mm	Flange width
A	32	mm	Base width
A0	42.5	mm	Overall width
B,B1,B2	43	mm	Width of inner ring
F	40	mm	Diameter of housing abutment
H	158	mm	Overall length

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	25.7	kN	Basic dynamic load rating
C0r	15.3	kN	Basic static load rating

Mass

mass

1

kg

Mass approx.
