C-UKFLX06D1-

Designations

C-UKFLX06D1

Included products

Bearing	UKX06D1		Bearing
Housing	FLX06D1		Housing

Associated products

Adapter sleeve

H2306X

Adapter sleeve

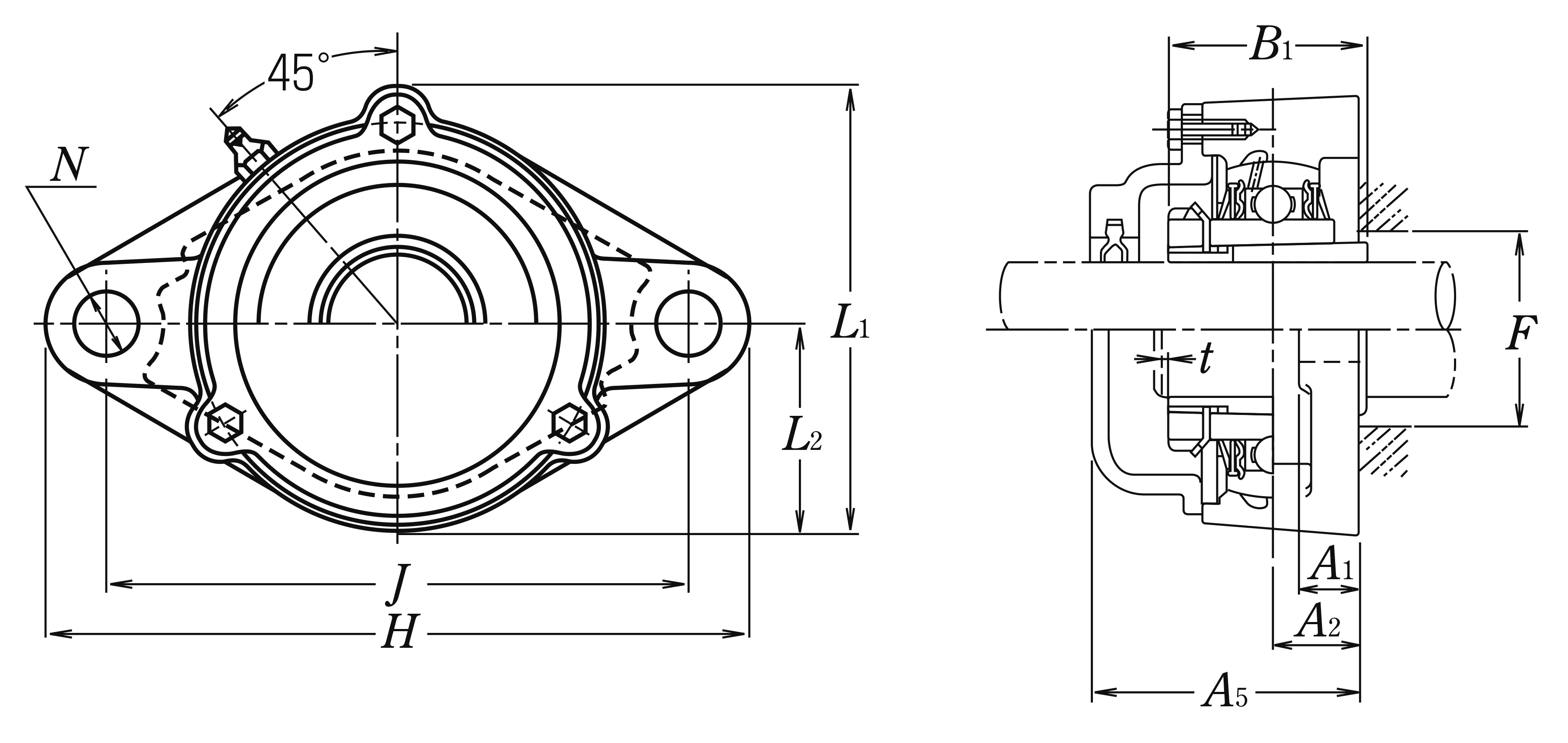

Nominal Dimensions

d	25	mm	Bore diameter
L,L1	98.5	mm	Overall height
J	130	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A2	19	mm	Flange width
A1	15	mm	Flange width
B,B1,B2	38	mm	Width of inner ring
t	2	mm	Clearance
H	156	mm	Overall length
L2	47.5	mm	Height of spherical seat centre

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	25.7	kN	Basic dynamic load rating
C0r	15.3	kN	Basic static load rating

Mass

mass

1.6

kg

Mass approx.
