ZM-UKFL206D1-

Designations

ZM-UKFL206D1

Included products

Bearing	UK206D1		Bearing
Housing	FL206D1		Housing

Associated products

Adapter sleeve

H2306X

Adapter sleeve

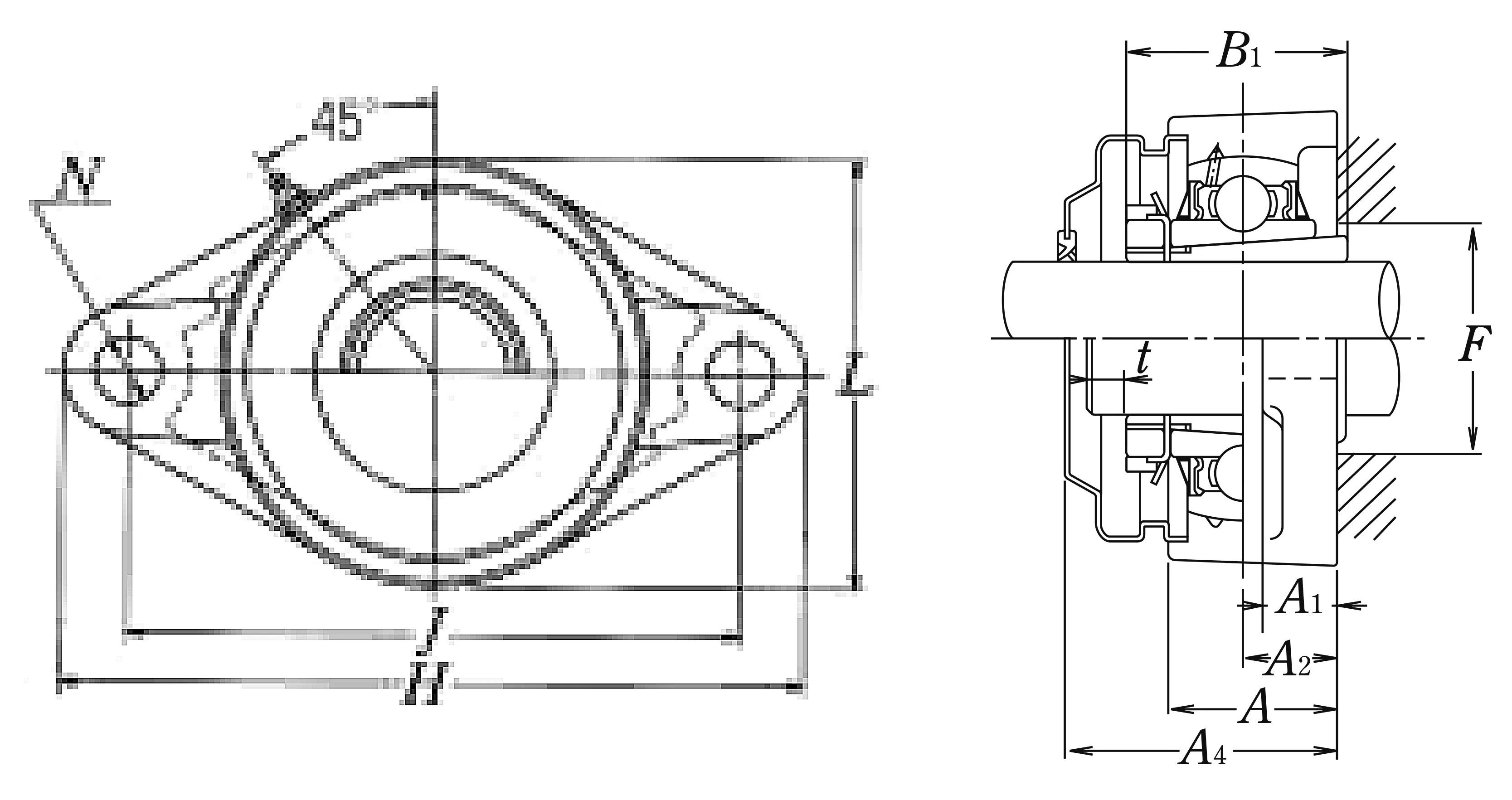

Nominal Dimensions

d	25	mm	Bore diameter
L,L1	80	mm	Overall height
J	117	mm	Distance between attachment bolts
N	18	mm	Diameter of attachment bolt hole
A2	18	mm	Flange width
A1	13	mm	Flange width
A	31	mm	Base width
A4	45	mm	Width including end cover
B,B1,B2	38	mm	Width of inner ring
F	36	mm	Diameter of housing abutment
t	2	mm	Clearance
H	148	mm	Overall length

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

mass

1

kg

Mass approx.
