CM-UKFL205D1-

Designations

CM-UKFL205D1

Included products

Bearing	UK205D1		Bearing
Housing	FL205D1		Housing

Associated products

Adapter sleeve

H2305X

Adapter sleeve

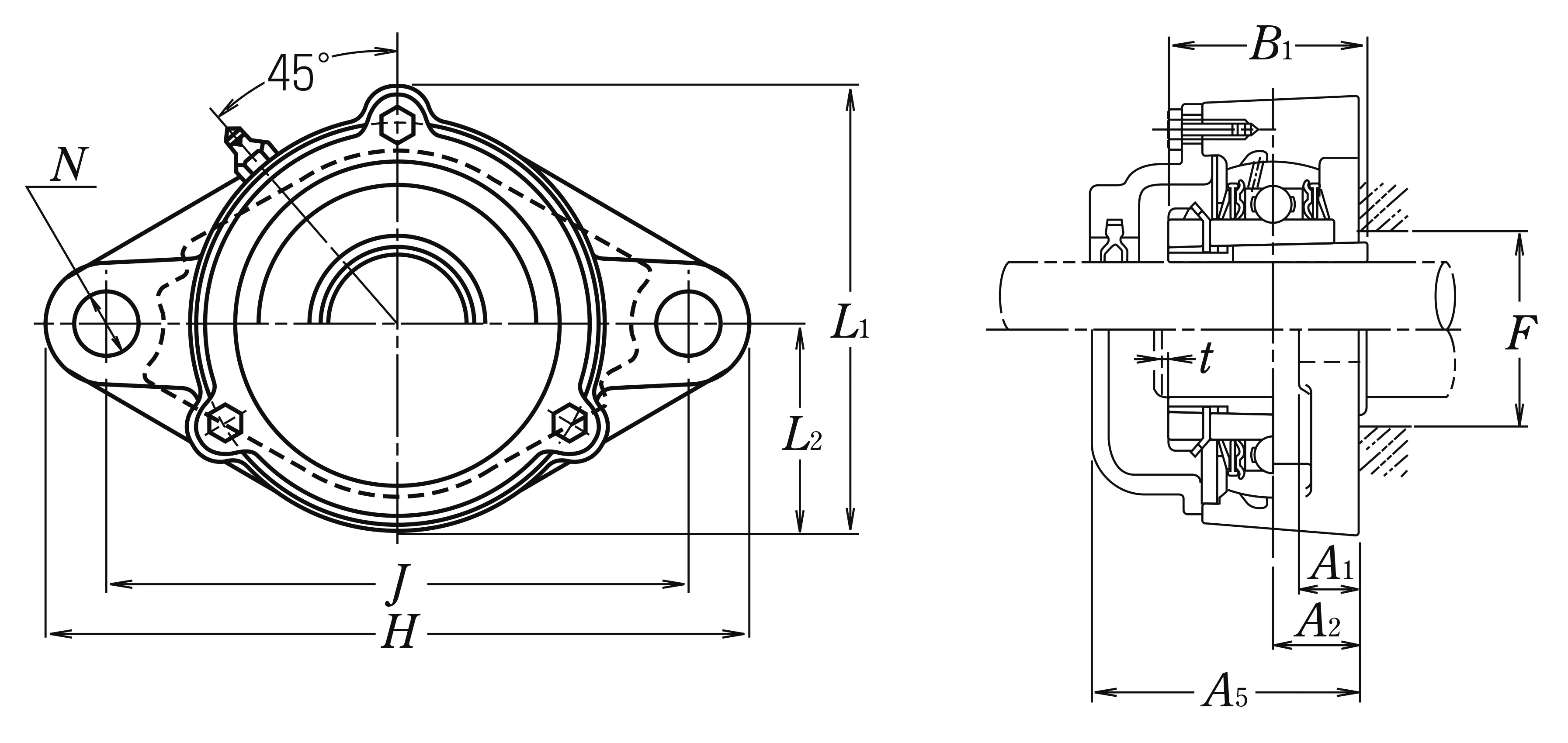

Nominal Dimensions

d	20	mm	Bore diameter
L,L1	74	mm	Overall height
J	99	mm	Distance between attachment bolts
N	16	mm	Diameter of attachment bolt hole
A2	16	mm	Flange width
A1	13	mm	Flange width
A5	51	mm	Width including end cover
B,B1,B2	35	mm	Width of inner ring
F	30	mm	Diameter of housing abutment
t	2	mm	Clearance
H	130	mm	Overall length
L2	34	mm	Height of spherical seat centre

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	14	kN	Basic dynamic load rating
C0r	7.85	kN	Basic static load rating

Mass

mass

0.8

kg

Mass approx.
