ASFB204-

Designations

ASFB204

Included products

Bearing	AS204		Bearing
Housing	FB204		Housing

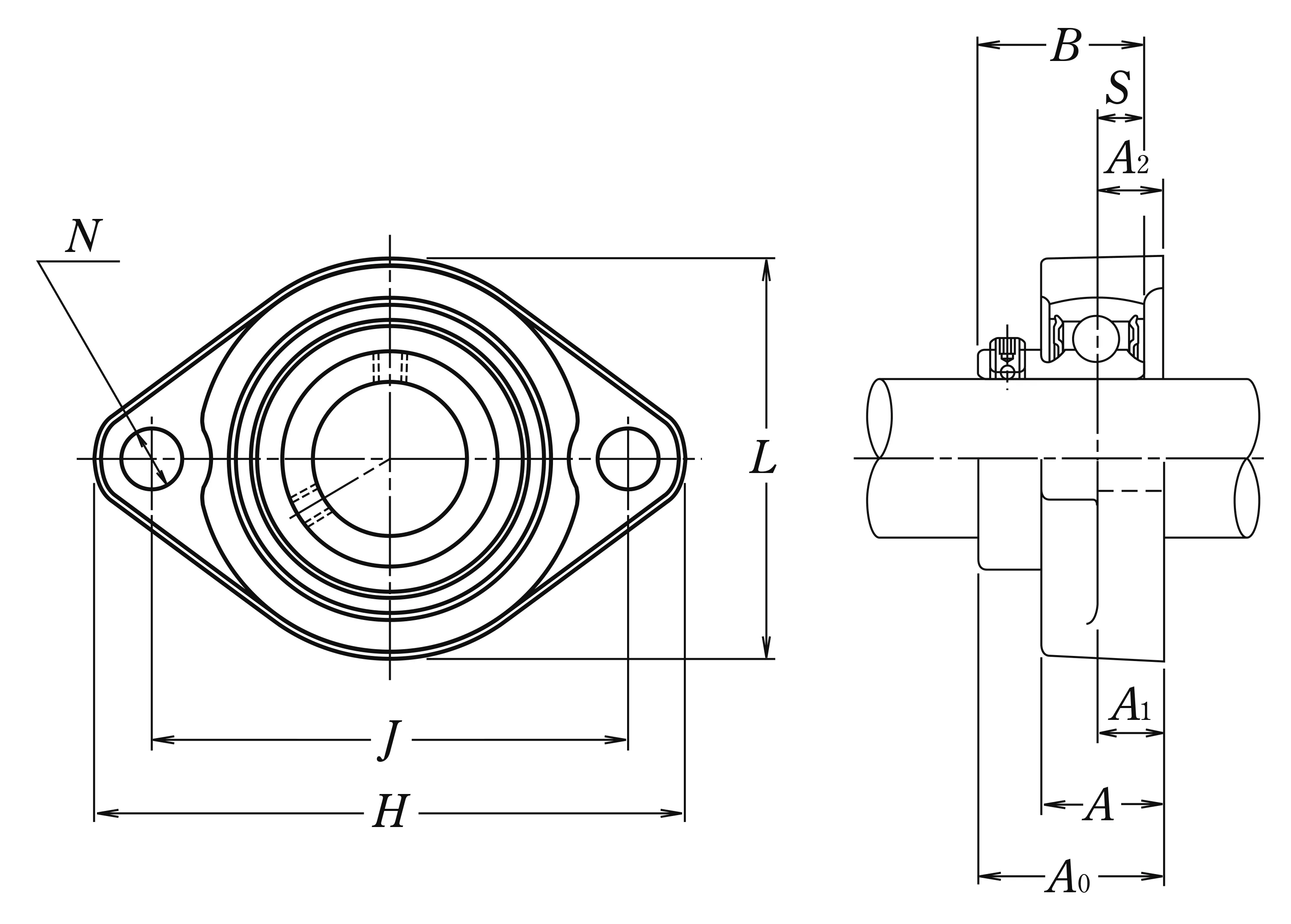

Nominal Dimensions

d	20	mm	Bore diameter
L,L1	61	mm	Overall height
J	71.5	mm	Distance between attachment bolts
N	10	mm	Diameter of attachment bolt hole
A2	11	mm	Flange width
A1	11	mm	Flange width
A	20	mm	Base width
A0	29	mm	Overall width
B,B1,B2	25	mm	Width of inner ring
H	90	mm	Overall length
S	7	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M8

Bolt size

Basic Load Ratings

Cr	12.8	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

mass

0.3

kg

Mass approx.
