F-UCFM204/LP99-

Designations

F-UCFM204/LP99

Included products

Bearing	F-UC204D1/LP99		Bearing
Housing	FM204		Housing

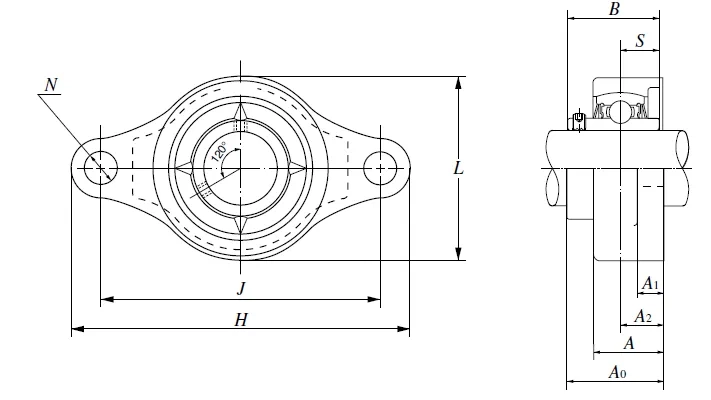

Nominal Dimensions

d	20	mm	Bore diameter
L,L1	60	mm	Overall height
H	112	mm	Height of spherical seat centre
J	90	mm	Distance between attachment bolts
N	12	mm	Diameter of attachment bolt hole
A2	15	mm	Flange width
A1	10	mm	Flange width
A	25.5	mm	Base width
A0	33.3	mm	Overall width
B,B1,B2	31	mm	Width of inner ring
S	12.7	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	9.9	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

mass

0.5

kg

Mass approx.
