ASPFL204-

Designations

ASPFL204

Included products

Bearing	AS204		Bearing
Housing	PFL204		Housing

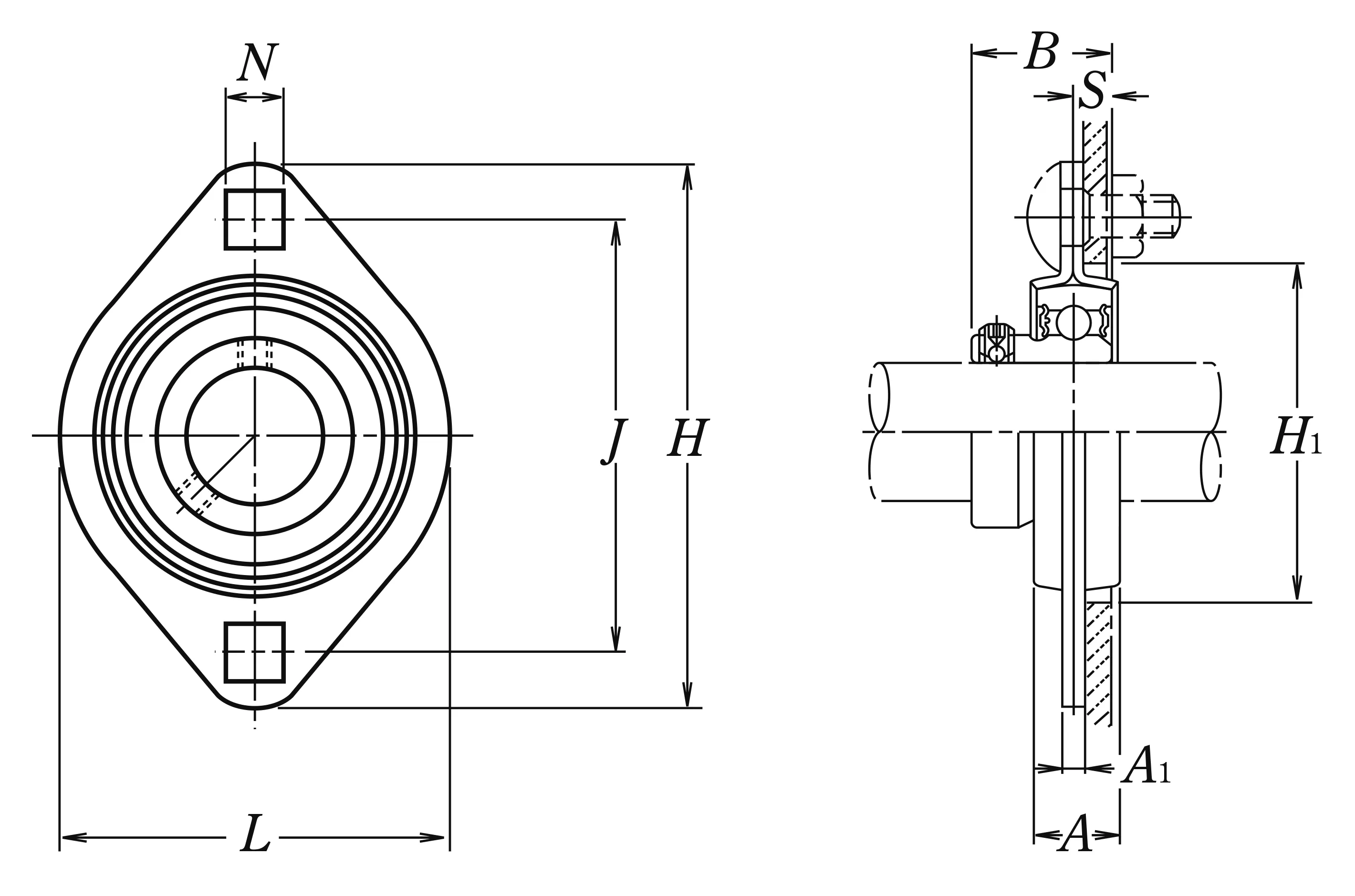

Nominal Dimensions

d	20	mm	Bore diameter
L,L1	67	mm	Overall height
H	90	mm	Height of spherical seat centre
J	71.5	mm	Distance between attachment bolts
N	9	mm	Diameter of attachment bolt hole
A1	4	mm	Flange width
A	16	mm	Base width
B,B1,B2	25	mm	Width of inner ring
H1	56	mm	Abutment diameter
S	7	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M 8

Bolt size

Permissible housing load

CR

3

kN

Radial

Basic Load Ratings

Cr	12.8	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

mass

0.2

kg

Mass approx.
