UCFA201D1-

Designations

UCFA201D1

Included products

Bearing	UC201D1		Bearing
Housing	FA204D1		Housing

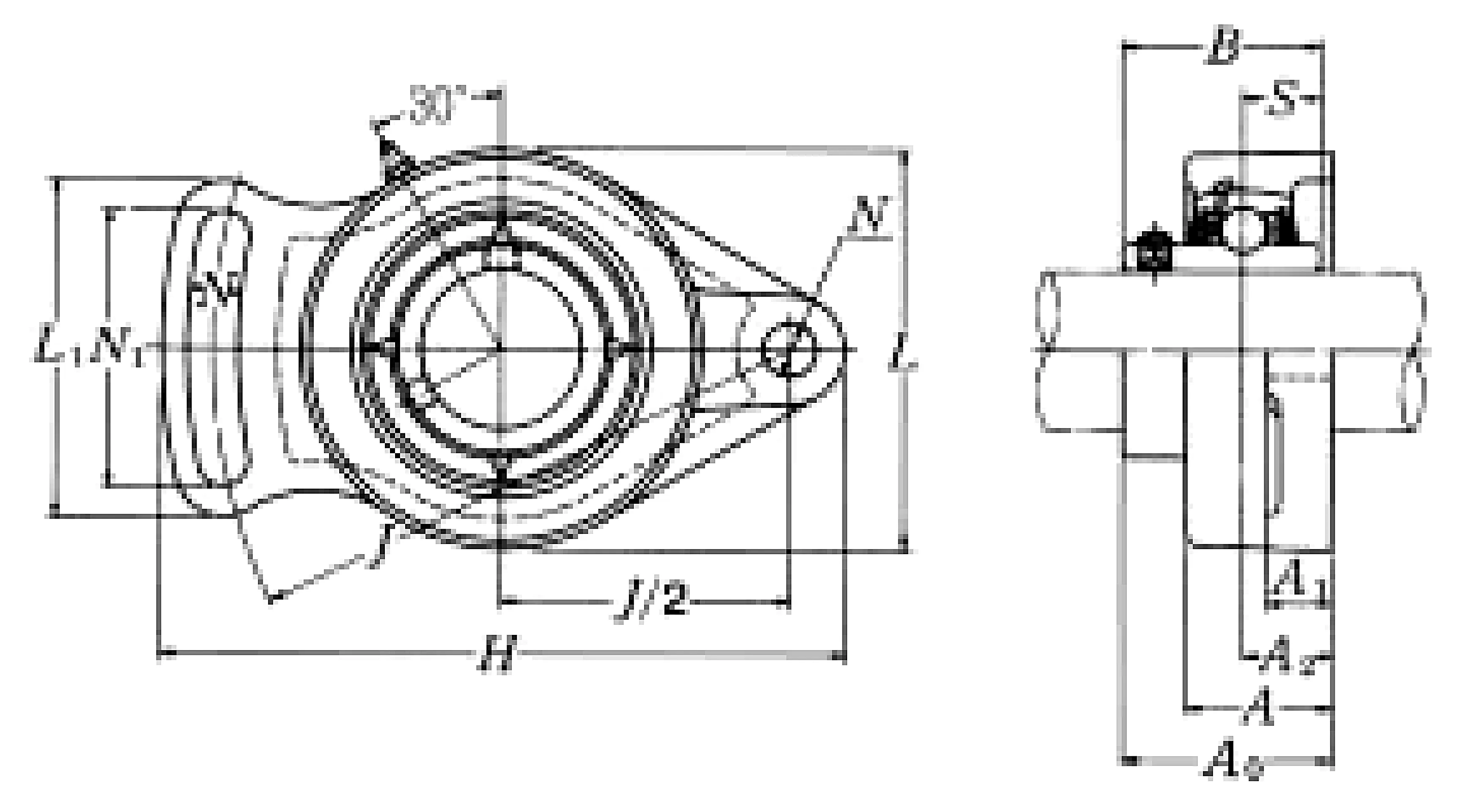

Nominal Dimensions

d	12	mm	Bore diameter
N1	40	mm	Length of attachment bolt hole
L,L1	60	mm	Overall height
J	78	mm	Distance between attachment bolts
N	10	mm	Diameter of attachment bolt hole
A2	15	mm	Flange width
A1	12	mm	Flange width
A	25.5	mm	Base width
A0	33.3	mm	Overall width
B,B1,B2	31	mm	Width of inner ring
H	98	mm	Overall length
S	12.7	mm	Distance from Opposite side face of locking device to raceway centre
L1	50	mm	Foot width

Mounting information

G

M 8

Bolt size

Basic Load Ratings

Cr	12.8	kN	Basic dynamic load rating
C0r	6.65	kN	Basic static load rating

Mass

mass

0.5

kg

Mass approx.
