Time：2025-09-26
Edit：JFU Bearing

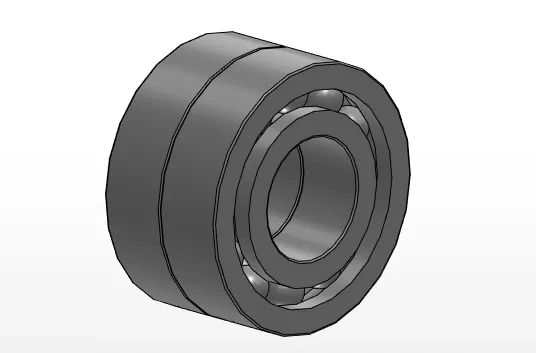

7200CDF
7200CDF
|
ORDER
Bearing No.
|
7200CDF | ||
|
SD
Inside Diameter
|
10 | mm | |
|
D
Outside Diameter
|
30 | mm | |
|
B
Width
|
9 | mm | |
|
R
Chamfer Dimension
|
0.6 | mm | |
|
R1
Chamfer Dimension
|
0.3 | mm | |
|
CR1
Basic Dynamic Load Ratings
|
8800 | N | |
|
COR1
Basic Static Load Ratings
|
5200 | N | |
|
CR2
Basic Dynamic Load Ratings
|
895 | kgf | |
|
COR2
Basic Static Load Ratings
|
530 | kgf | |
|
FO
Factors
|
13.2 | ||
|
LG
Limiting Speed Grease
|
32000 | rpm | |
|
LO
Limiting Speed Oil
|
45000 | rpm | |
|
A
Eff. Load center
|
3.6 | mm | |
|
DA1
Abutment and Fillet Dimensions min.
|
15 | mm | |
|
DA2
Abutment and Fillet Dimensions max.
|
25 | mm | |
|
RA
Abutment and Fillet Dimensions max.
|
0.6 | mm |
