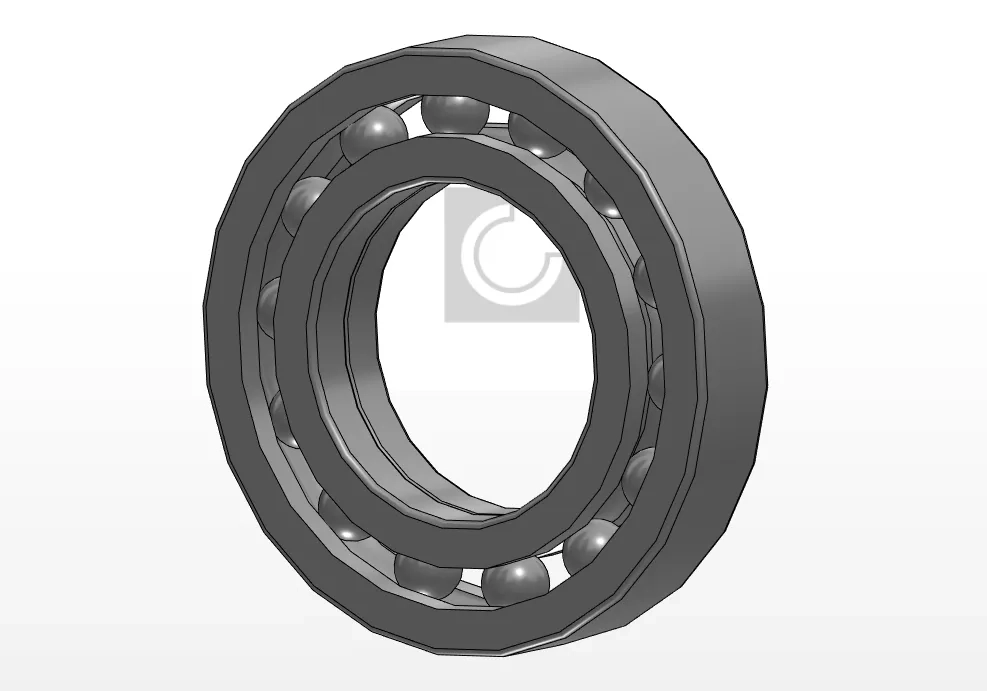

QJ210
QJ210
|
ORDER
Bearing No.
|
QJ210 | ||
|

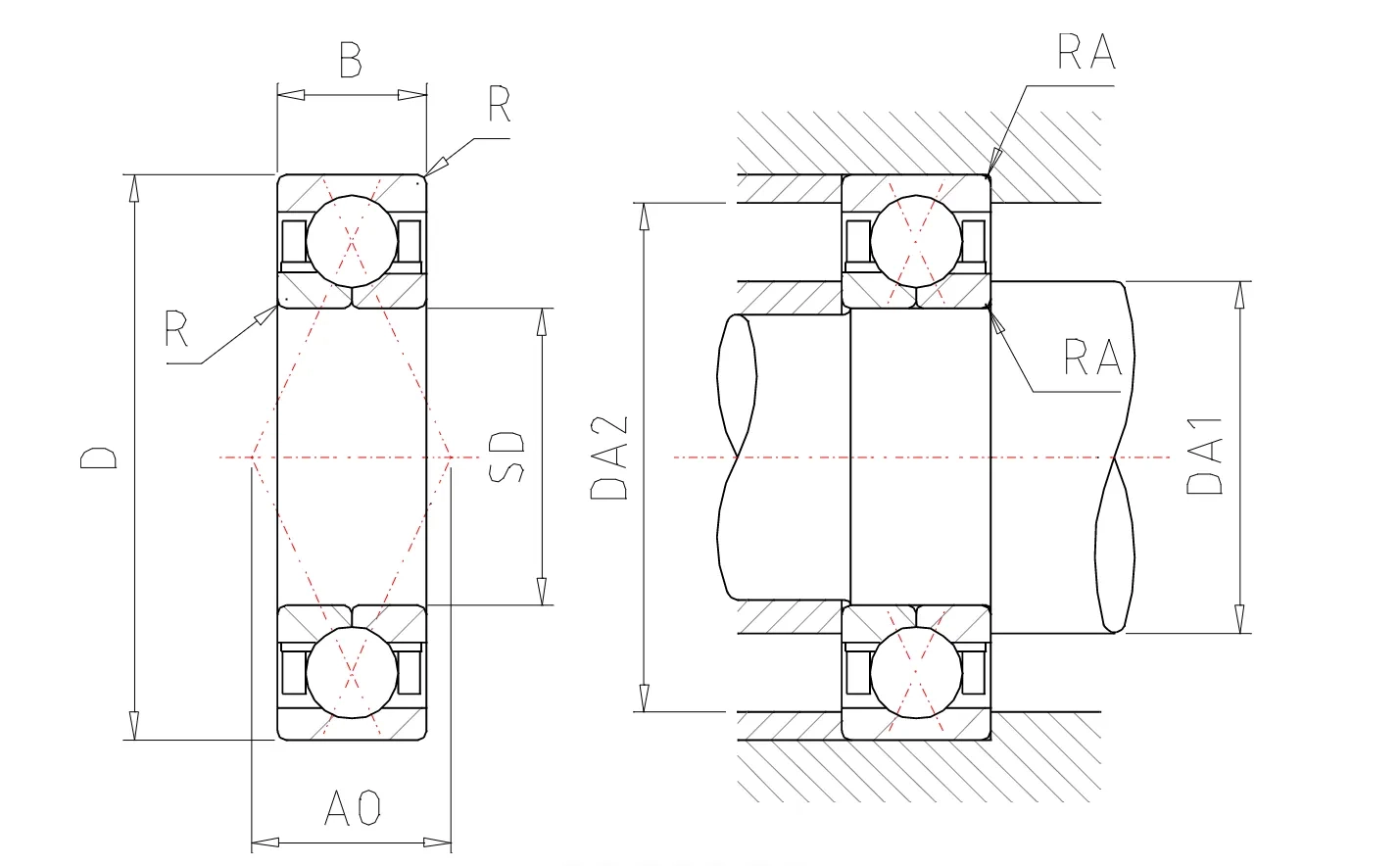

SD
Inside diameter
|
50 | mm | |
|
D
Outside Diameter
|
90 | mm | |
|
B
Width
|
20 | mm | |
|
R
Chamfer Dimension
|
1.1 | mm | |
|
CR1
Basic Dynamic Load Ratings
|
57000 | N | |
|
COR1
Basic Static Load Ratings
|
97000 | N | |
|
CR2
Basic Dynamic Load Ratings
|
5850 | kgf | |
|
COR2
Basic Static Load Ratings
|
9900 | kgf | |
|
LG
Limiting Speed Grease
|
5600 | rpm | |
|
LO
Limiting Speed Oil
|
8000 | rpm | |
|
AO
Load center spacings
|
49 | mm | |
|
DA1
Abutment and Fillet Dimensions min.
|
57 | mm | |
|
DA2
Abutment and Fillet Dimensions max.
|
83 | mm | |
|
RA
Abutment and Fillet Dimensions max.
|
1 | mm | |
|
MASS
Mass
|
0.59 | kg |
