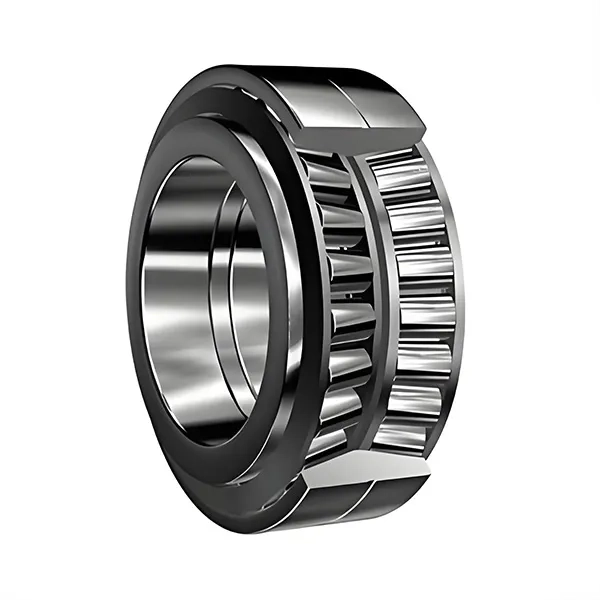

105KBE42X+L
105KBE42X+L
|
ORDER
Bearing No.
|
105KBE42X+L | ||
|

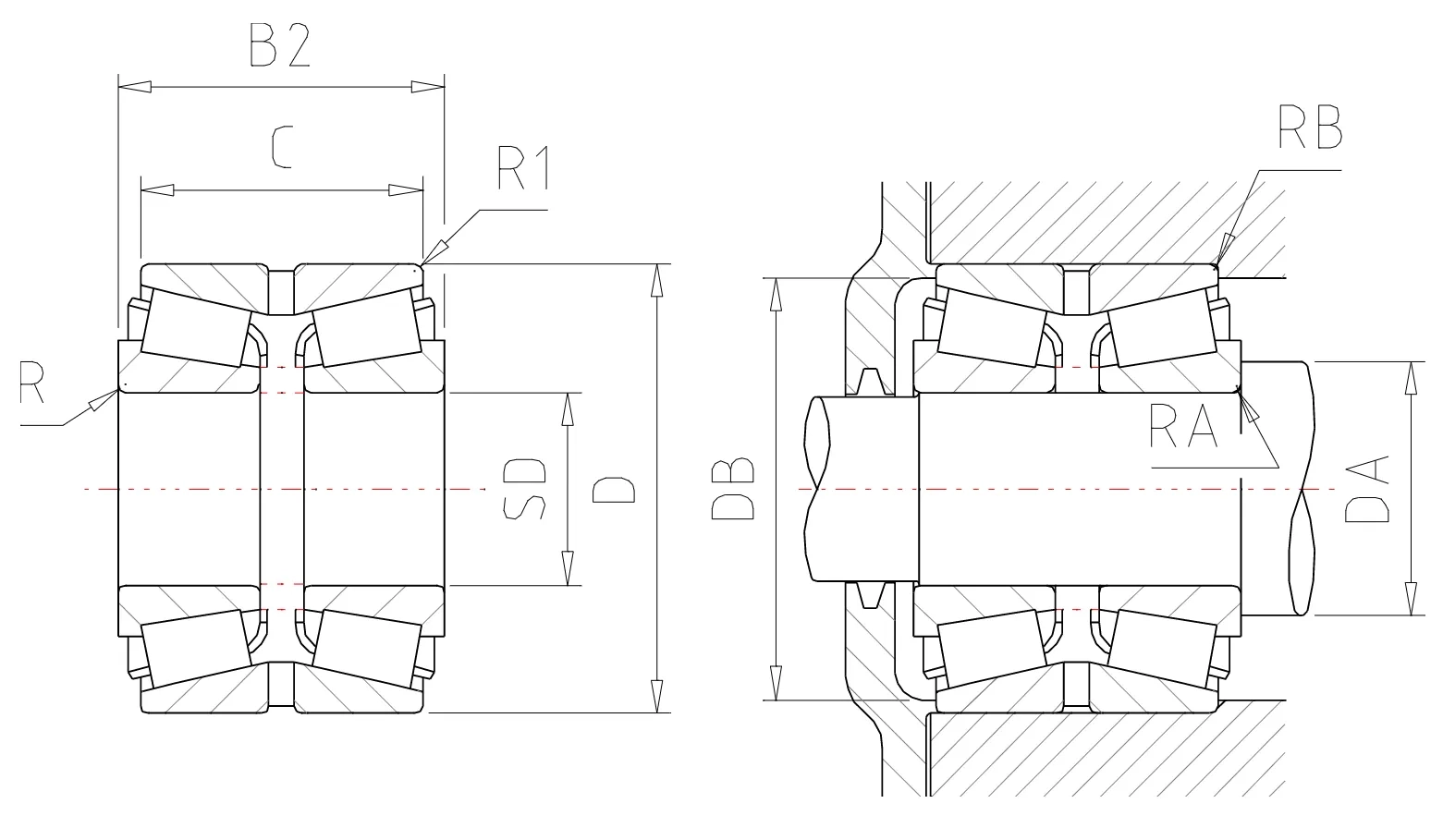

SD
Inside Diameter
|
105 | mm | |
|
D
Outside Diameter
|
190 | mm | |
|
B2
Width
|
88 | mm | |
|
C
Width
|
70 | mm | |
|
R
Chamfer Dimension
|
3 | mm | |
|
R1
Chamfer Dimension
|
1 | mm | |
|
CR1
Basic Dynamic Load Ratings
|
435000 | N | |
|
COR1
Basic Static Load Ratings
|
635000 | N | |
|
CR2
Basic Dynamic Load Ratings
|
44500 | kgf | |
|
COR2
Basic Static Load Ratings
|
65000 | kgf | |
|
LG
Limiting Speed Grease
|
1500 | rpm | |
|
LO
Limiting Speed Oil
|
2000 | rpm | |
|
DA
Abutment and Fillet Dimensions min.
|
123 | mm | |
|
DB
Abutment and Fillet Dimensions min.
|
181 | mm | |
|
RA
Abutment and Fillet Dimensions max.
|
2 | mm | |
|
RB
Abutment and Fillet Dimensions max.
|
0.8 | mm | |
|
E
Constant
|
0.42 | ||
|
Y2
Axial load factors
|
2.4 | ||
|
Y3
Axial load factors
|
1.6 | ||
|
Y0
Axial load factors
|
1.6 | ||
|
MASS
Mass
|
9.21 | kg |
