Time：2025-09-28
Edit：JFU Bearing

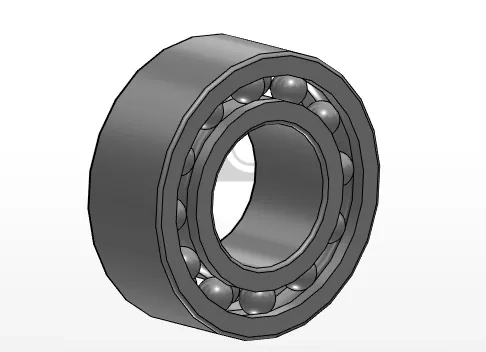

5209
5209
|
ORDER
Bearing No.
|
5209 | |||
|

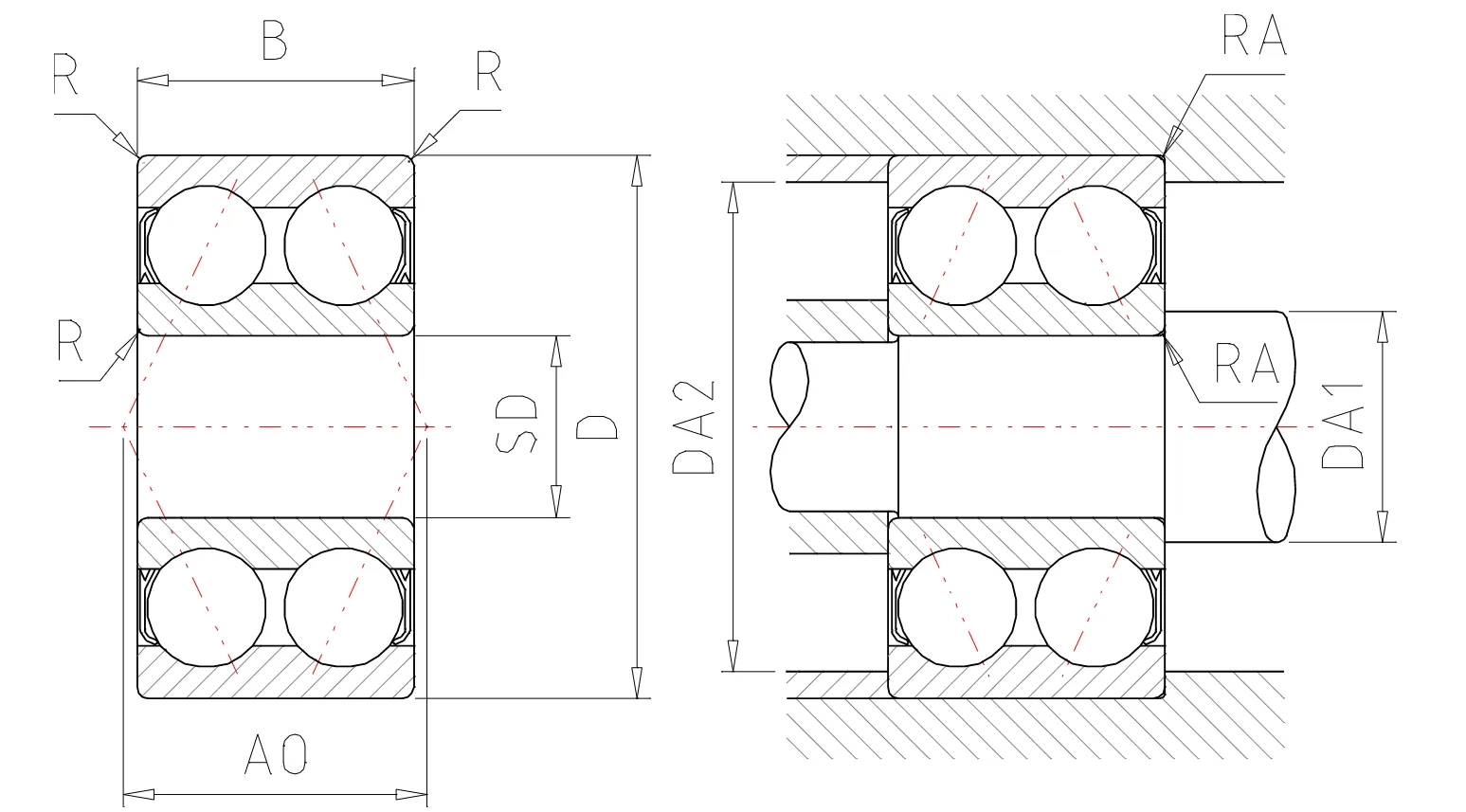

SD
Inside Diameter
|
45 | mm | ||
|
D
Outside Diameter
|
85 | mm | ||
|
B
Width
|
30.2 | mm | ||
|
R
Chamfer Dimension
|
1.1 | mm | ||
|
R1
Chamfer Dimension
|
49500 | mm | ||
|
CR1
Basic Dynamic Load Ratings
|
38000 | N | ||
|
COR1
Basic Static Load Ratings
|
5050 | N | ||
|
CR2
Basic Dynamic Load Ratings
|
3900 | kgf | ||
|
COR2
Basic Static Load Ratings
|
5000 | kgf | ||
|
FO
Factors
|
6700 | |||
|
LG
Limiting Speed Grease
|
43.4 | rpm | ||
|
LO
Limiting Speed Oil
|
52 | rpm | ||
|
A
Eff. Load center
|
78 | mm | ||
|
DA1
Abutment and Fillet Dimensions min.
|
1 | mm | ||
|
DA2
Abutment and Fillet Dimensions max.
|
mm | |||
|
RA
Abutment and Fillet Dimensions max.
|
mm |
