UEL320D1 Series-

Designations

UEL320D1

Included products

Bearing

UEL320D1

Bearing

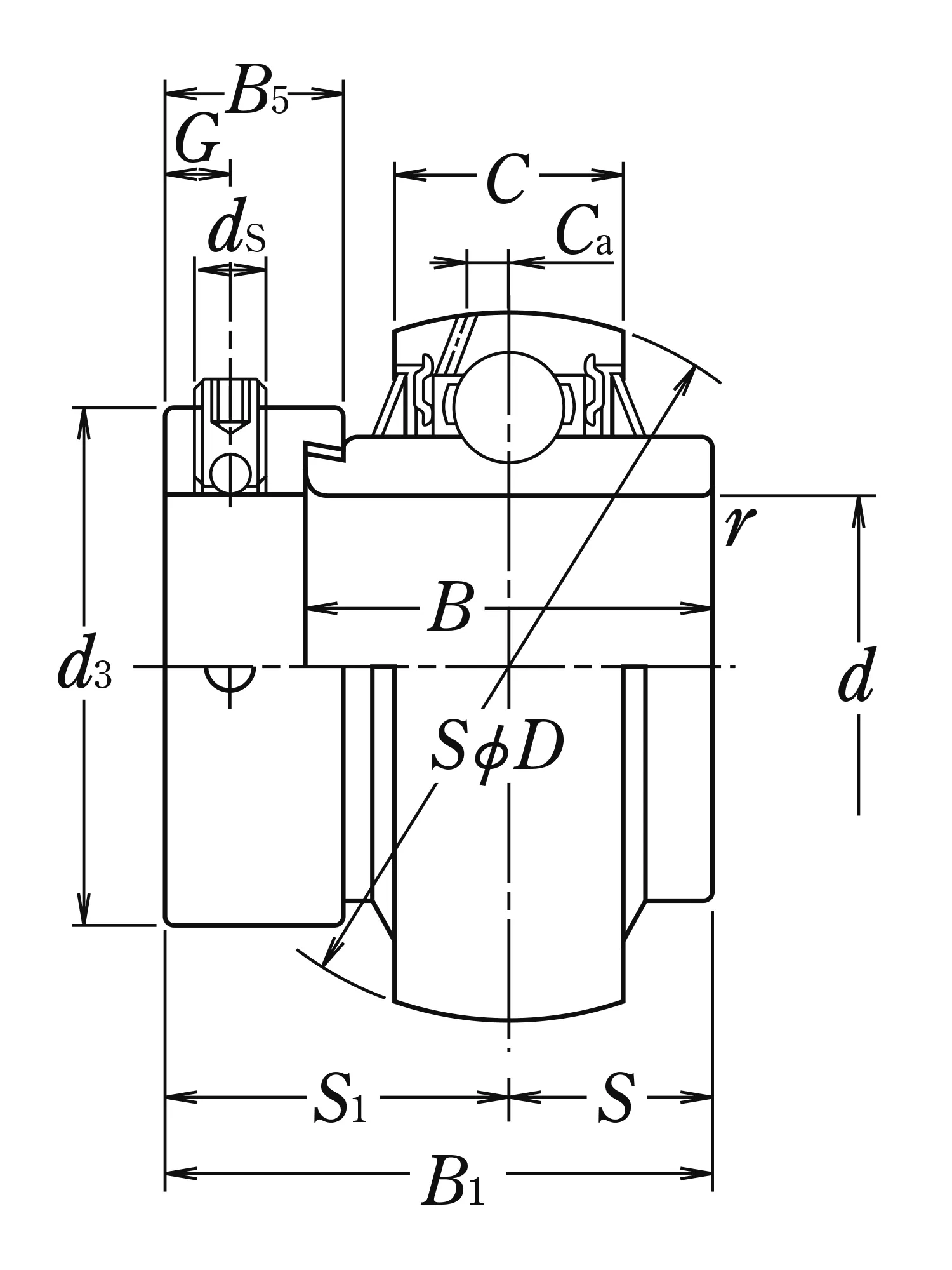

Nominal Dimensions

d	100	mm	Bore diameter
D	215	mm	Outside diameter
B1	128.6	mm	Overall bearing width
B,B4	100	mm	Width of inner ring
C	55	mm	Outer ring width
r(min.)	3	mm	Chamfer dimension
S1	78.6	mm	Distance from locking device side face to raceway centre
G	14.3	mm	Distance face to thread centre
ds	M20×1.5		Set screw
Ca	14	mm	Distance from oil hole centre to raceway centre
d3	146	mm	Outside diameter of locking collar
B5	36.5	mm	Width of locking collar

Basic Load Ratings

Cr	173	kN	Basic dynamic load rating
C0r	141	kN	Basic static load rating

Mass

Mass approx.

13

kg

Mass approx.
