UCS318 Series-

Designations

UCS318

Included products

Bearing

UCS318

Bearing

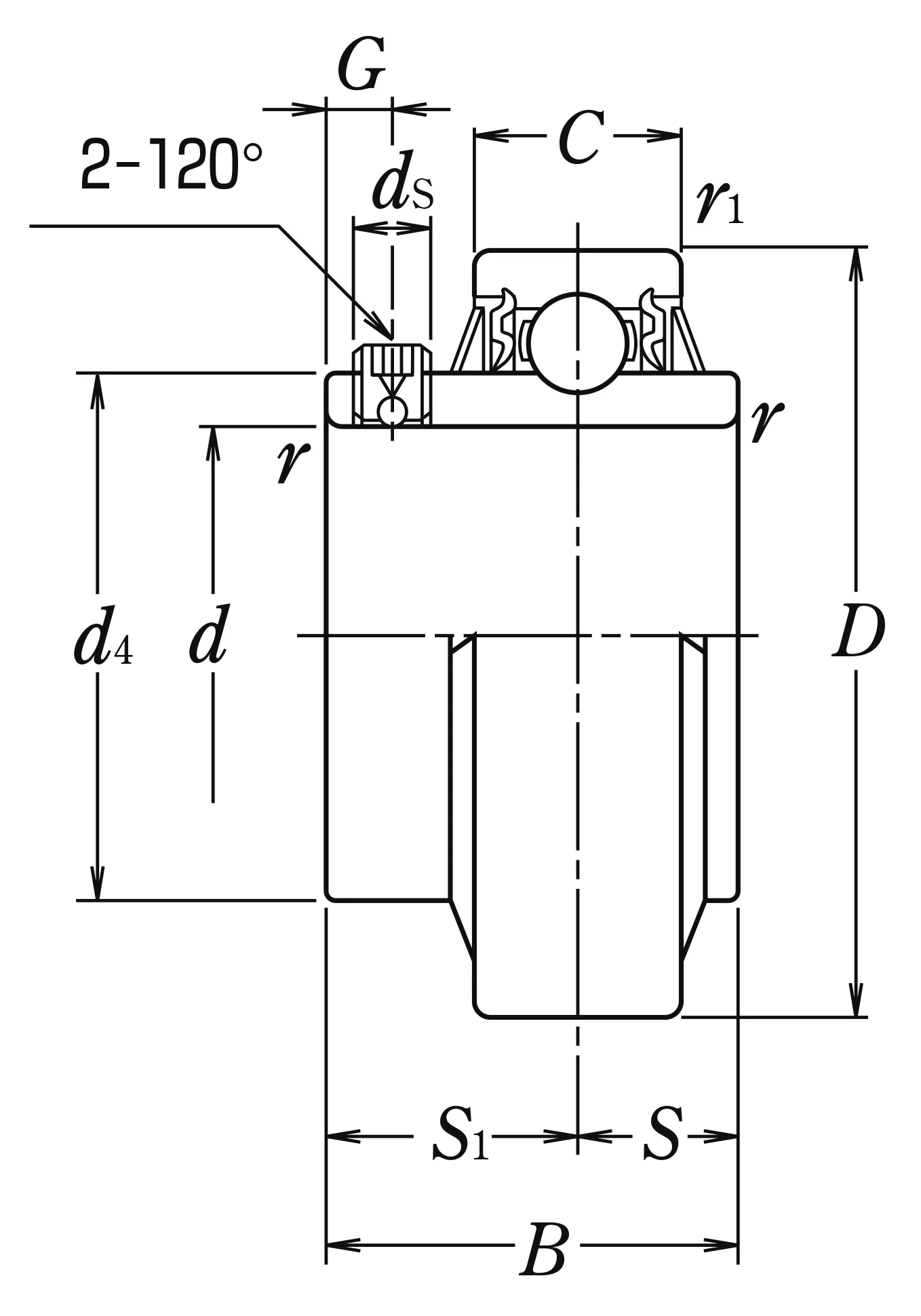

Nominal Dimensions

d	90	mm	Bore diameter
D	190	mm	Outside diameter
B,B4	96	mm	Width of inner ring
C	49	mm	Outer ring width
r(min.)	3	mm	Chamfer dimension
r1(min.)	2.5	mm	Chamfer dimension
S1	56	mm	Distance from locking device side face to raceway centre
G	16	mm	Distance face to thread centre
ds	M16×1.5		Set screw
d4	120.9	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	143	kN	Basic dynamic load rating
C0r	107	kN	Basic static load rating

Mass

Mass approx.

7.8

kg
