UCS218 Series-

Designations

UCS218

Included products

Bearing

UCS218

Bearing

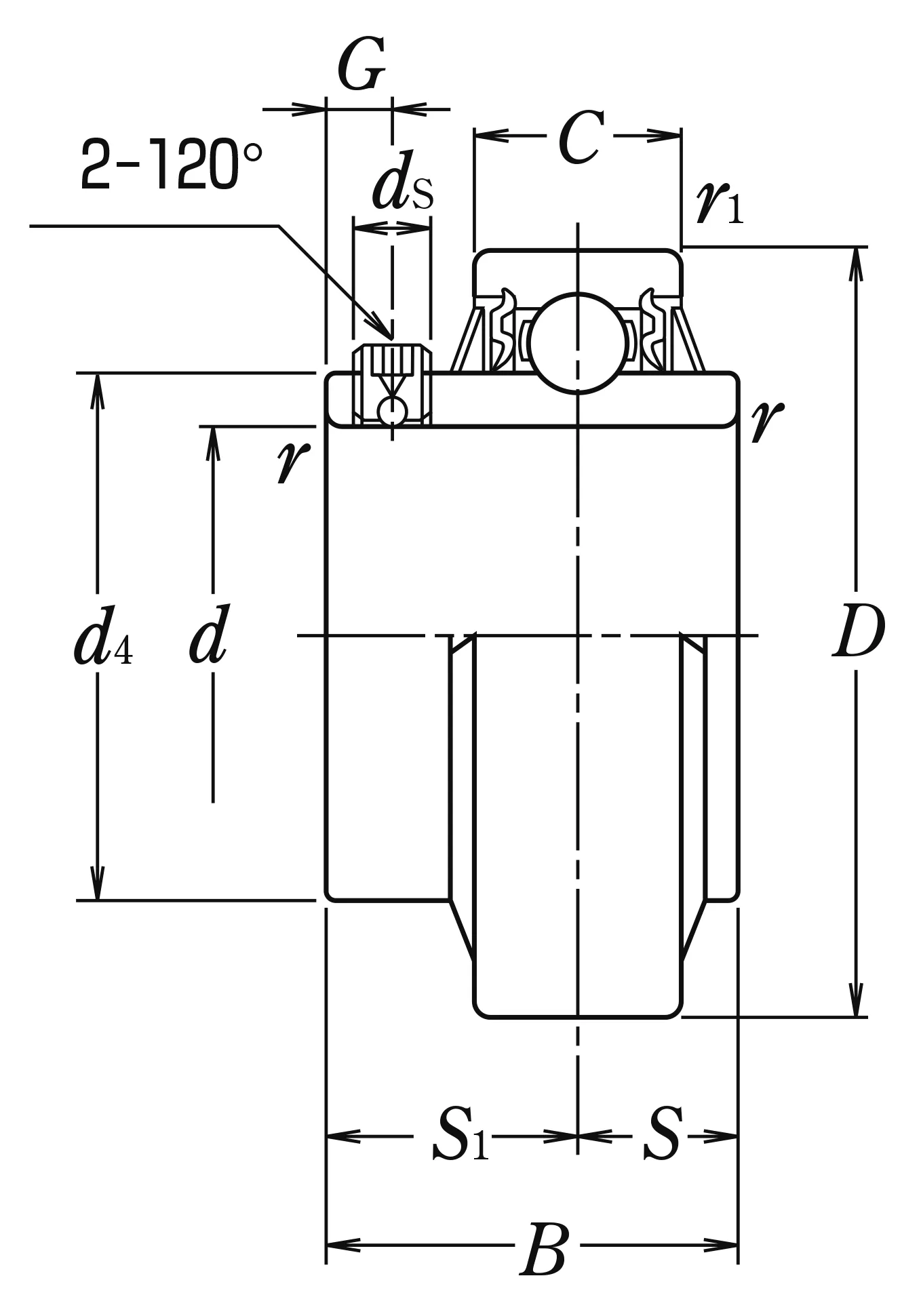

Nominal Dimensions

d	90	mm	Bore diameter
D	160	mm	Outside diameter
B,B4	96	mm	Width of inner ring
C	37	mm	Outer ring width
r(min.)	2.5	mm	Chamfer dimension
r1(min.)	2.5	mm	Chamfer dimension
S1	56.3	mm	Distance from locking device side face to raceway centre
G	12	mm	Distance face to thread centre
ds	M12×1.5		Set screw
d4	111.6	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	96	kN	Basic dynamic load rating
C0r	71.5	kN	Basic static load rating

Mass

Mass approx.

4.24

kg
