UCS317 Series-

Designations

UCS317

Included products

Bearing

UCS317

Bearing

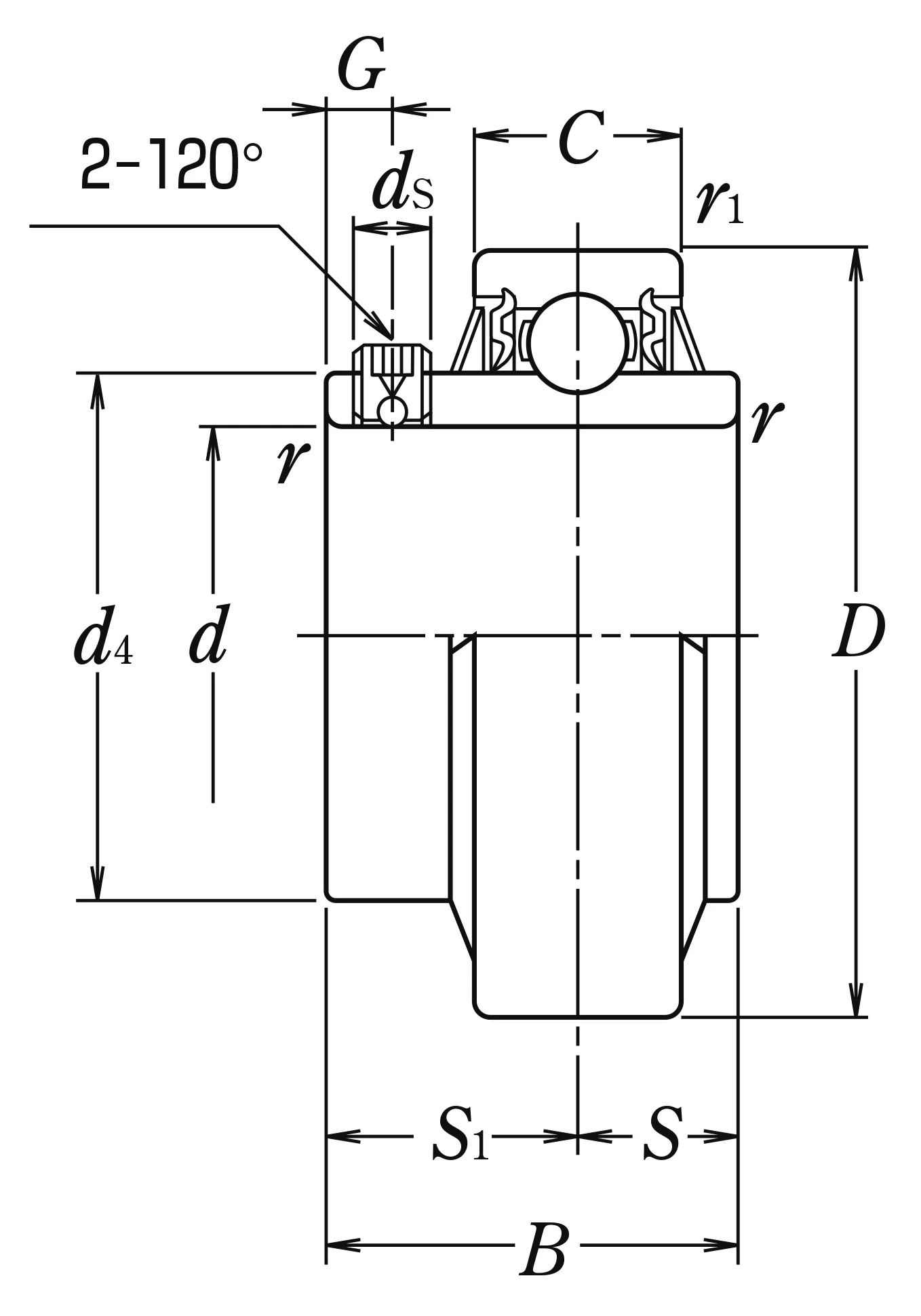

Nominal Dimensions

d	85	mm	Bore diameter
D	180	mm	Outside diameter
B,B4	96	mm	Width of inner ring
C	47	mm	Outer ring width
r(min.)	3	mm	Chamfer dimension
r1(min.)	2.5	mm	Chamfer dimension
S1	56	mm	Distance from locking device side face to raceway centre
G	16	mm	Distance face to thread centre
ds	M16×1.5		Set screw
d4	114.4	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	133	kN	Basic dynamic load rating
C0r	97	kN	Basic static load rating

Mass

Mass approx.

6.88

kg

Mass approx.
