UCS316 Series-

Designations

UCS316

Included products

Bearing

UCS316

Bearing

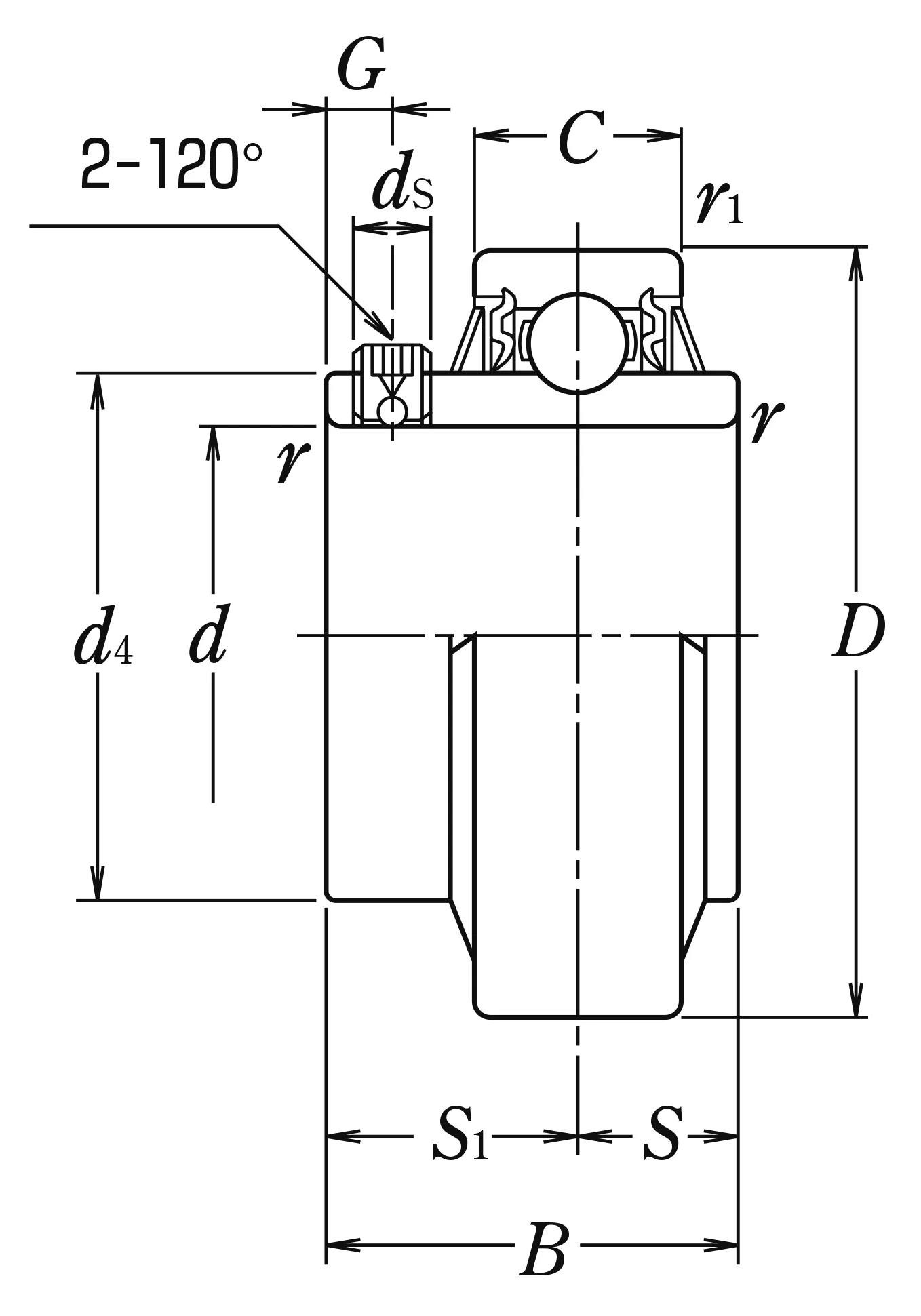

Nominal Dimensions

d	80	mm	Bore diameter
D	170	mm	Outside diameter
B,B4	86	mm	Width of inner ring
C	45	mm	Outer ring width
r(min.)	2.5	mm	Chamfer dimension
r1(min.)	2	mm	Chamfer dimension
S1	52	mm	Distance from locking device side face to raceway centre
G	14	mm	Distance face to thread centre
ds	M14×1.5		Set screw
d4	107.9	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	123	kN	Basic dynamic load rating
C0r	86.5	kN	Basic static load rating

Mass

Mass approx.

5.74

kg

Mass approx.
