UEL316D1 Series-

Designations

UEL316D1

Included products

Bearing

UEL316D1

Bearing

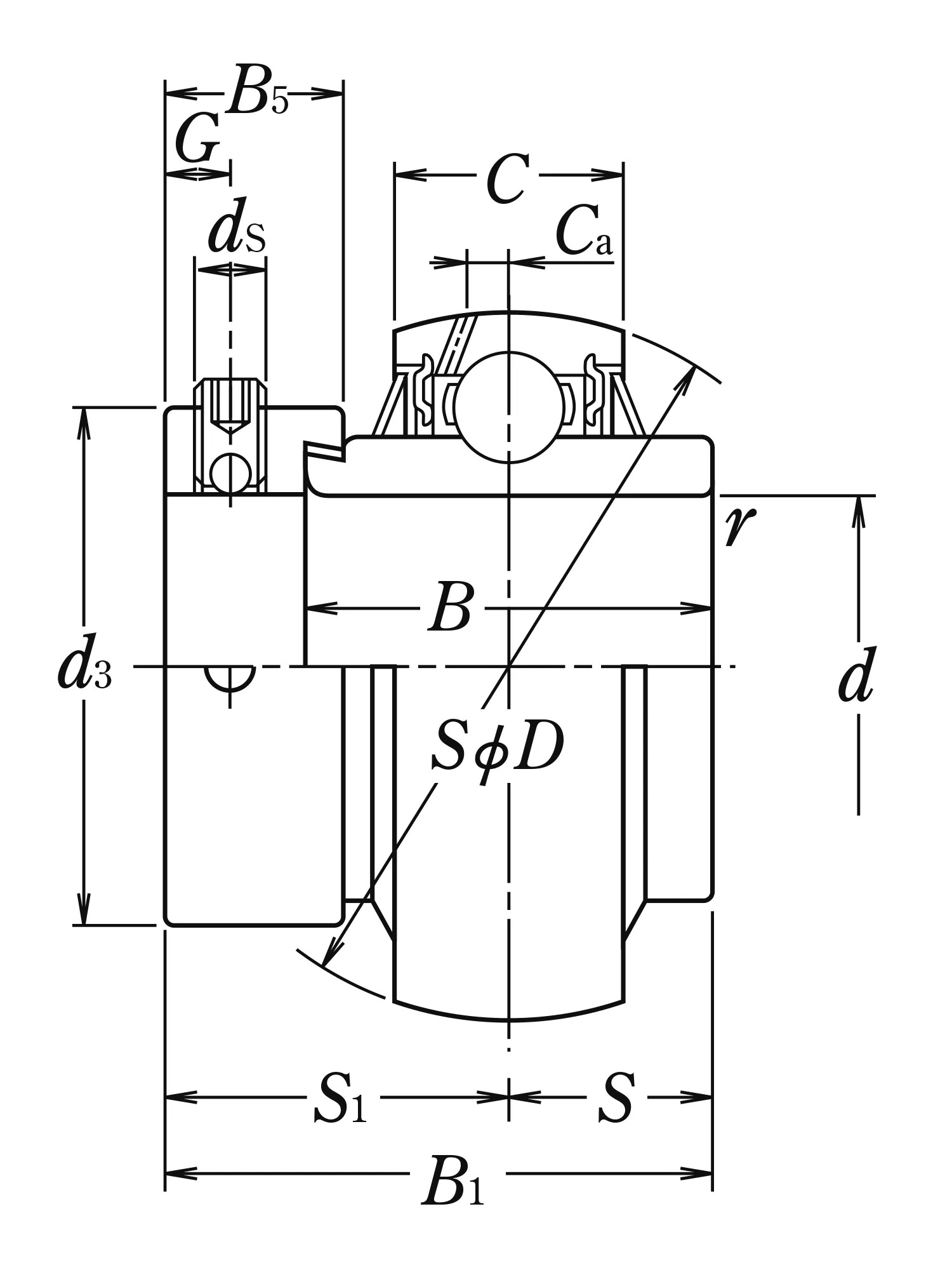

Nominal Dimensions

d	80	mm	Bore diameter
D	170	mm	Outside diameter
B1	106.4	mm	Overall bearing width
B,B4	81	mm	Width of inner ring
C	45	mm	Outer ring width
r(min.)	2.5	mm	Chamfer dimension
S1	65.9	mm	Distance from locking device side face to raceway centre
G	12.7	mm	Distance face to thread centre
ds	M16×1.5		Set screw
Ca	11.1	mm	Distance from oil hole centre to raceway centre
d3	119	mm	Outside diameter of locking collar
B5	31.8	mm	Width of locking collar

Basic Load Ratings

Cr	123	kN	Basic dynamic load rating
C0r	86.5	kN	Basic static load rating

Mass

Mass approx.

6.7

kg

Mass approx.
