UK316D1 Series-

Designations

UK316D1

Included products

Bearing

UK316D1

Bearing

Associated products

Adapter sleeve

H2316X

Adapter sleeve

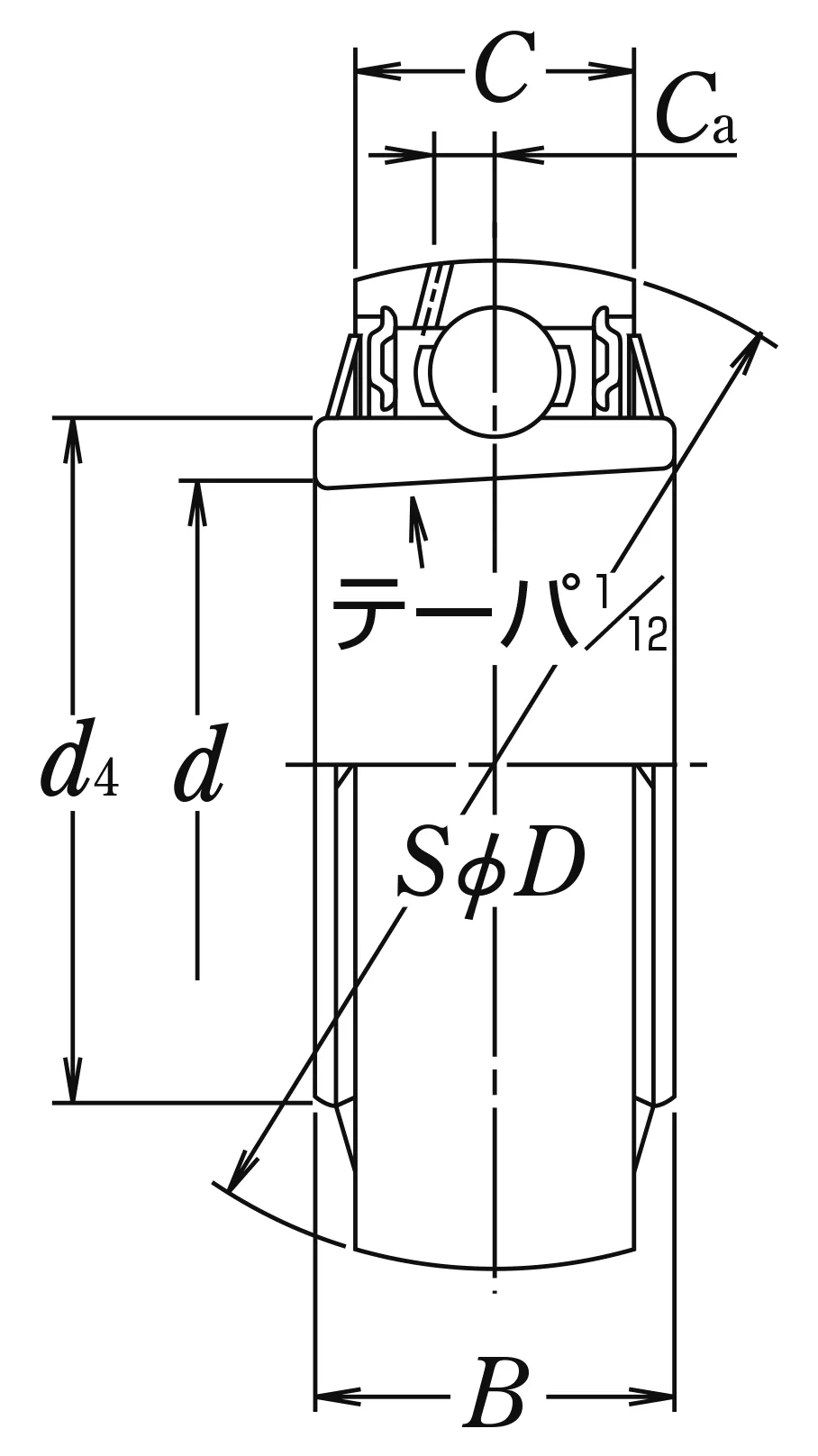

Nominal Dimensions

d	80	mm	Bore diameter
D	170	mm	Outside diameter
B1	78	mm	Overall bearing width
d1	70	mm	Sleeve bore diameter
d2	105	mm	Outside diameter lock nut
B,B4	58	mm	Width of inner ring
B2	17	mm	Width lock nut including lock washer
C	45	mm	Outer ring width
Ca	11.1	mm	Distance from oil hole centre to raceway centre
d4	107.9	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	123	kN	Basic dynamic load rating
C0r	86.5	kN	Basic static load rating

Mass

Mass approx.

5.75

kg

Mass approx.
