UCS216 Series-

Designations

UCS216

Included products

Bearing

UCS216

Bearing

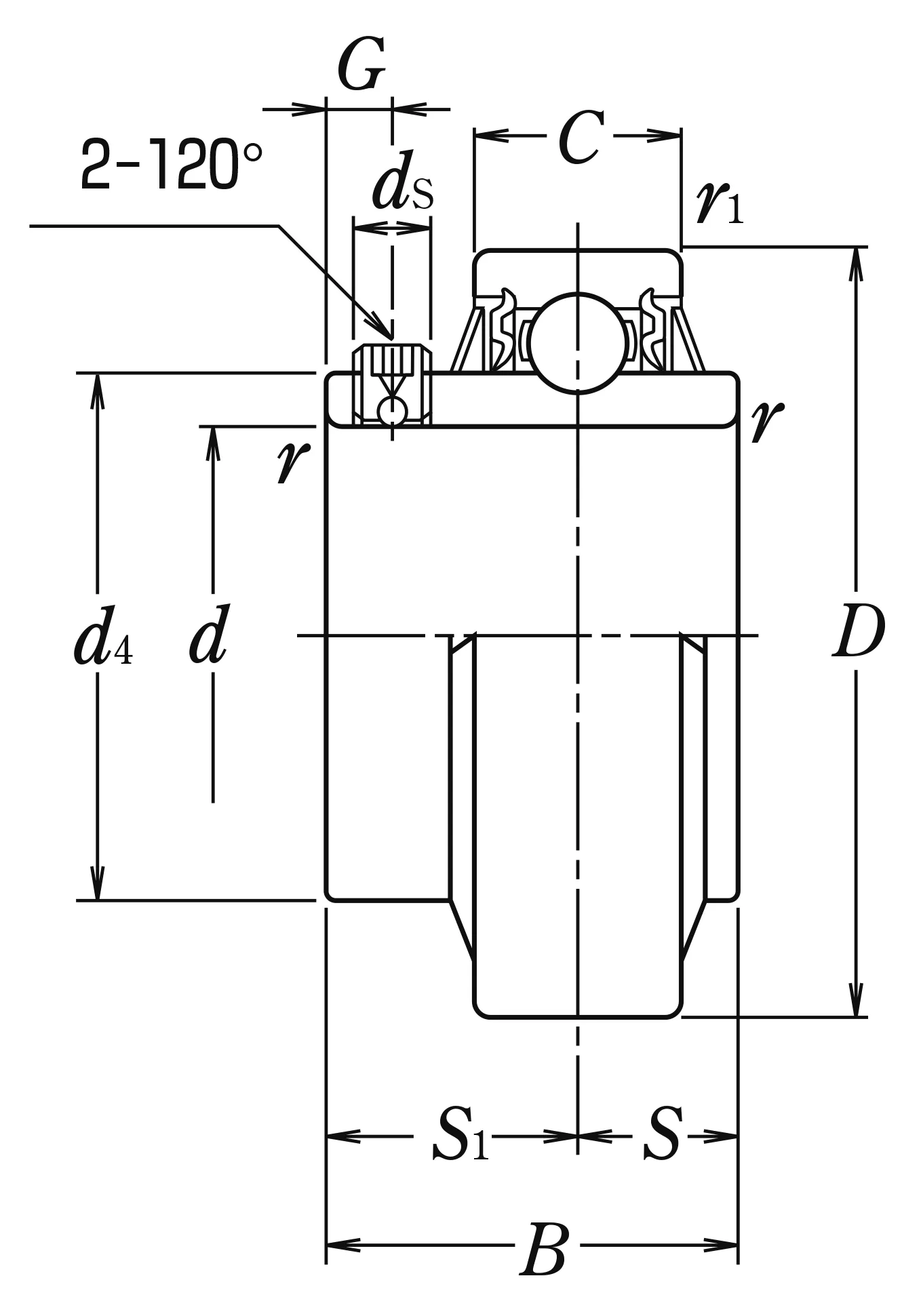

Nominal Dimensions

d	80	mm	Bore diameter
D	140	mm	Outside diameter
B,B4	82.6	mm	Width of inner ring
C	35	mm	Outer ring width
r(min.)	2.5	mm	Chamfer dimension
r1(min.)	2.5	mm	Chamfer dimension
S1	49.3	mm	Distance from locking device side face to raceway centre
G	12	mm	Distance face to thread centre
ds	M10×1.25		Set screw
d4	98.1	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	72.5	kN	Basic dynamic load rating
C0r	53	kN	Basic static load rating

Mass

Mass approx.

2.89

kg

Mass approx.
