UCS214 Series-

Designations

UCS214

Included products

Bearing

UCS214

Bearing

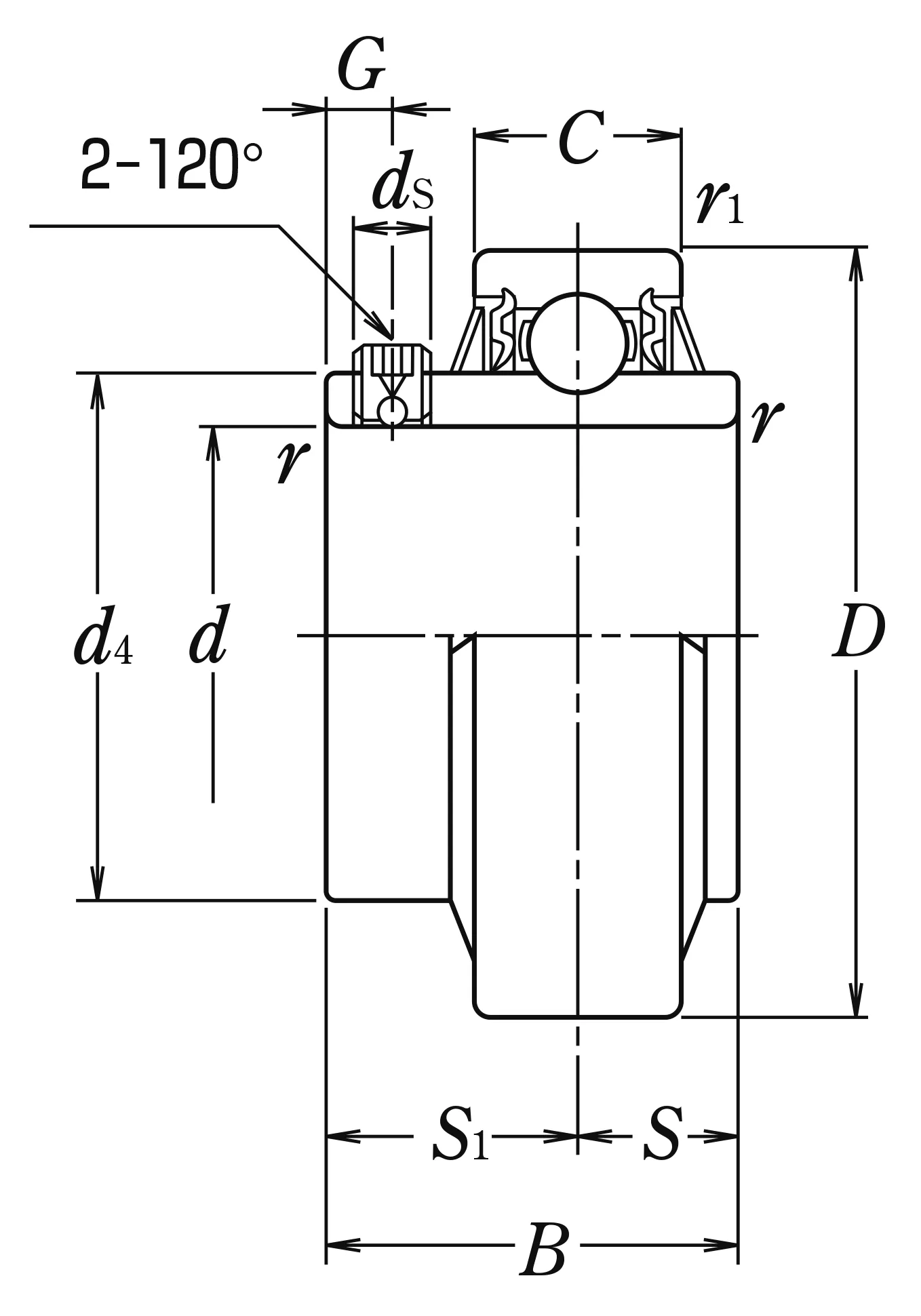

Nominal Dimensions

d	70	mm	Bore diameter
D	125	mm	Outside diameter
B,B4	74.6	mm	Width of inner ring
C	33	mm	Outer ring width
r(min.)	2	mm	Chamfer dimension
r1(min.)	2	mm	Chamfer dimension
S1	44.4	mm	Distance from locking device side face to raceway centre
G	12	mm	Distance face to thread centre
ds	M10×1.25		Set screw
d4	87	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	62	kN	Basic dynamic load rating
C0r	44	kN	Basic static load rating

Mass

Mass approx.

2.17

kg
