UELS313 Series-

Designations

UELS313

Included products

Bearing

UELS313

Bearing

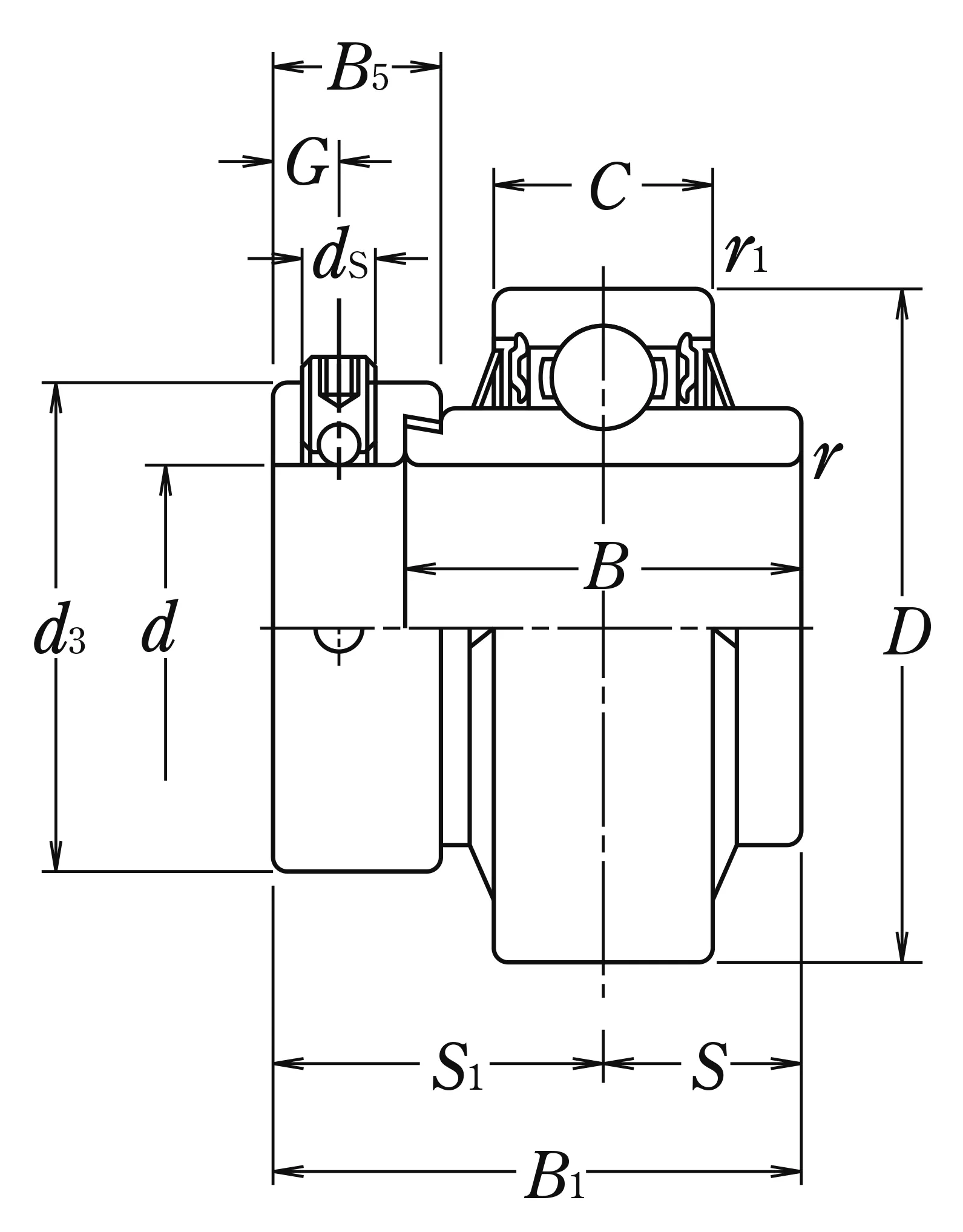

Nominal Dimensions

d	65	mm	Bore diameter
D	140	mm	Outside diameter
B1	85.7	mm	Overall bearing width
B,B4	65.1	mm	Width of inner ring
C	39	mm	Outer ring width
r(min.)	2.5	mm	Chamfer dimension
r1(min.)	2	mm	Chamfer dimension
S1	53.15	mm	Distance from locking device side face to raceway centre
G	10.3	mm	Distance face to thread centre
ds	M12×1.5		Set screw
d3	97	mm	Outside diameter of locking collar
B5	27	mm	Width of locking collar

Basic Load Ratings

Cr	92.5	kN	Basic dynamic load rating
C0r	60	kN	Basic static load rating

Mass

Mass approx.

3.79

kg

Mass approx.
